Aperçu /Produits/glissant le panneau a vu/Factory Supply 3050*3150*900mm Long Service Life Horizontal Panel Saw For Timber Processing

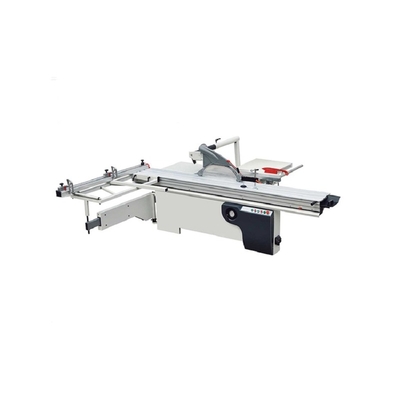

Factory Supply 3050*3150*900mm Long Service Life Horizontal Panel Saw For Timber Processing

1 Set
MOQ
$2,200.00(1 - 2 Sets) $2,150.00(3 - 4 Sets) $2,100.00(>=5 Sets)
Prix
Factory Supply 3050*3150*900mm Long Service Life Horizontal Panel Saw For Timber Processing
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Panel Saw Machine, Panel Saw Machine
Use: Woodworking
Style: Horizontal
Place of Origin: Shandong, China
Nom de marque: HSH
Usage: Wood cutting
Voltage: 380V/220V
Dimension(L*W*H): 3250 *3150*900mm
Warranty: 1 Year
Application: WOODWORKING, PANEL SAW MACHINE
Weight (KG): 600 KG
Power (kW): 5.5
Key Selling Points: SLIDING TABLE
Applicable Industries: Construction works , Other, Furniture
Marketing Type: NEW
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: SAW BLADE
Name: Panel Saw Machine
Product name: MJ6130TA Panel Saw Machine
Showroom Location: None
Informations de base
Place of Origin: Shandong, China
Nom de marque: HSH
Conditions de paiement et expédition
Packaging Details: Plywood cases
Supply Ability: 500 Set/Sets per Month
Description de produit
Panel Saw Machine

Features of Panel Saw Machine:

1, adopted with 375mm width of sliding table, round stick guide rail, the boards on the table are more steady.
2,the motor is 5.5kw, high speed to make sure the edges of panels/boards straight and smooth.
3, manual up & down and manual tilting angle of saw blade: 0-45 degree
4, the saw blade is supplied with customized , there are more holes and more teeth in the saw blade, the noise is lower than a whole surface and less teeth in it.
5, the scoring saw blade is a smaller blade to score a line before the main saw cuts the boards, more precise and straight.
Product Paramenters
Model
MJ6128TA
MJ6130TA
MJ6132TA
Dimensions sliding table
2800 *375mm
3000 *375mm
3200 *375mm
Width if cut between saw blade and rip fence
1250mm
1250mm
1250mm
Saw blade Φ
300mm(Φ250-Φ300)
300mm(Φ250-Φ300)
300mm(Φ250-Φ300)
Height if cut Φ300mm
70mm
70mm
70mm
Speed of main saw blade
4500/6000rpm
4500/6000rpm
4500/6000rpm
Spindle diameter
30mm
30mm
30mm
Tiling saw blade
0- 45°
0- 45°
0- 45°
Main motor
5.5kw
5.5kw
5.5kw
Scoring saw blade
120mm
120mm
120mm
Speed of scoring saw blade
8000r/min
8000r/min
8000r/min
Spindle of scoring saw blade
20mm
20mm
20mm
Motor
1.1kw
1.1kw
1.1kw
Net weight
600kg
600kg
600kg
Over dimensions
2800 *3150*900mm
3000 *3150*900mm
3200 *3150*900mm
SIMILAR PRODUCTS

V8-32A

3200*400mm Altendorf table/0-45°/ Manually lifting & adjusting/European type dust hood/digital display

MJ6132TA

3200*375mm Altendorf table/0-45°/ Manually lifting & adjusting/European type dust hood

MJ6132TY

3200*375mm table/round stick guide rail/ Manual adjusting 0-45° / Manual lifting up & down

V8-38B

3800*435mm table/45°/round stick guide rail/ lifting saw blade by motor & adjusting angel by motor /European dust hood/ pneumatic
pressing device/ Digital display

MJ45A

3200*390mm table/45°/round stick guide rail/ lifting saw blade by motor & adjusting angel by hand /European dust hood(for option)/
Digital display

MJ6132TD

3200*435mm Altendorf table/0-45°/ lifting by motor & adjusting/European type dust hood/digital display

MJ330C

Computer control by long distance, 2600mm 3200mm 3800mm. PLC & Touch screen control . Store and set sizes:10 groups, 10 sizes in one group,
total 100 sizes

MJ260A

CNC Panel Saw Machine, 2600mm 3200mm 3800mm. PLC & Touch screen control . Store and set sizes:10 groups, 10 sizes in one group, total 100 sizes

MJ6233

Electronic Panel Saw Machine, 2600mm 3200mm 3800mm. PLC & Touch screen control

MJ600T

400-600mm Big Saw Blade 7.5kw Bigger Motor, cutting thickness 170-220mm

MJ164

80/90/100/120/130mm thickness, saw blade in bottom structure

MJ153A

80/90/100/120/130mm thickness, saw blade in top structure
Options for More Panel Saw Machine
Model
Specifications
V8-38D
3800*435mm table/0-45°/Altendorf table/ Electric lifting up & down and adjusting angle /European type dust hood/digital display
/meter fence/Slope ruler
V8-32D
3800*435mm table/0-45°/Altendorf table/ Electric lifting up & down/Manual adjusting angle /digital display/meter fence/Slope ruler
V8-32A
3200*400mm table/0-45°/Altendorf table/ Manual lifting up & down and adjusting angle/digital display/meter fence/Slope ruler
V8-30A
3000*400mm table/0-45°/Altendorf table/ Manual lifting up & down and adjusting angle/digital display/meter fence/Slope ruler
V8-28A
2800*400mm table/0-45°/Altendorf table/ Manual lifting up & down and adjusting angle/digital display/meter fence/Slope ruler
MJ6132TA
3200*380mm table/round stick guide rail/Altendorf table/ Manual adjusting 0-45° / Manual lifting up & down / Manual press device
MJ6130TA
3000*380mm table/round stick guide rail/ Altendorf table/Manual adjusting 0-45° / Manual lifting up & down / Manual press device
MJ6128TA
2800*380mm table/round stick guide rail/ Altendorf table/Manual adjusting 0-45° / Manual lifting up & down / Manual press device
MJ61-38TY
3800*375mm table/round stick guide rail/ Manual adjusting 0-45° / Manual lifting up & down / digital display / Manual press device
MJ61-32TY
3200*375mm table/round stick guide rail/ Manual adjusting 0-45° / Manual lifting up & down / digital display / Manual press device
MJ61-30TY
3000*375mm table/round stick guide rail/ Manual adjusting 0-45° / Manual lifting up & down/ digital display / Manual press device
MJ61-28TY
2800*375mm table/round stick guide rail/ Manual adjusting 0-45° / Manual lifting up & down / digital display/ Manual press device
MJ6132TY
3200*375mm table/0-45°/round stick guide rail/ Manual lifting and adjusting /standard dust hood
MJ6130TY
3000*375mm table/0-45°/round stick guide rail/ Manual lifting and adjusting /standard dust hood
MJ6128TY
2800*375mm table/0-45°/round stick guide rail/ Manual lifting and adjusting /standard dust hood
MJ6132Y
3200*320mm table/90°/round stick guide rail/ Manual lifting /standard dust hood
MJ6130Y
3000*320mm table/90°/round stick guide rail/ Manual lifting /standard dust hood
MJ6128Y
2800*320mm table/90°/round stick guide rail/ Manual lifting /standard dust hood
Options:
Sliding table: 2800,3000,3200,3800mm length, 310,320,360,375,390,400,415,435mm in width
Adjustment: 0-45-90 degree, manual tilting & manual tilting; manual tilting & electric lifting; electric tilting & manual lifting;
electric tilting & electric lifting
Guide rail: Altendorf , round stick or linear guide rail.
Dust hood(cover): European type, Italy type, customized big or standard small dust hood.
LOADING
8 SETS FOR A 20’ CONTAINER / 20-24SETS FOR A 40’ CONTAINER (WITHOUT PLYWOOD CASE)
Workshop showing
After sale service

Pre-sale service.

(1) Provide the free consultation of equipment .
(2) Provide the standard device and the flow chart.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
(4)Welcome to visit our factory.

Service during the sales.

(1) Inspect the machine before leaving the factory .
(2) Oversea install and debug the equipment .
(3) Train the first-line operator.

After sales service.

(1) 24 hours online service.
(2) Provide the VIDEO with install and debug the equipment .
(3) Provide technical exchanging.
