Building Material Shops 3D Simulation Display CNC Automatic Roll Bender With Rolling And Push Function

1 Set
MOQ
$38,000.00(1 - 1 Sets) $37,000.00(>=2 Sets)
Prix
Building Material Shops 3D Simulation Display CNC Automatic Roll Bender With Rolling And Push Function
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Material / Metal Processed: ALLOY, Brass / Copper, Carbon steel, Stainless Steel, Aluminum
Condition: New
Machine Type: bending machine, Pipe and Tube Bending Machine
Bending Radius (mm): 20 - 250
Max. Bending Angle (Deg): 180
Bending Precision (Deg): 0.1
Place of Origin: Jiangsu, China
Nom de marque: CARE
Automation: Automatic
Extra Services: Cut To Length
Year: Newest
Power (kW): 5.5
Weight (KG): 2600
Warranty: 1 Year
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Key Selling Points: Multifunctional
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, PLC, Pressure vessel, Engine
After-sales Service Provided: Engineers available to service machinery overseas, Online support, Video technical support
Power: Hydraulic
Raw Material: PIPE
Control: PLC control with touch screen
Head: Single head
Material: All steel pipes
Type: Hydraulic Bending
Axis servo: 4 Axis
CNC Roll Bender: CNC Roll Bender
Certification: ce
After Warranty Service: Video technical support, Online support
Local Service Location: None
Informations de base
Place of Origin: Jiangsu, China
Nom de marque: CARE
Certification: ce
Conditions de paiement et expédition
Packaging Details: Standard exporting polywood box
Supply Ability: 30 Set/Sets per Month CNC Roll Bender
Description de produit

3D simulation display Automatic CNC Roll Bender with rolling and pushing function

Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe etc.

Recommended application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.

Main specification

1. Interactive PLC touch screen offers easy access to auto and manual operating modes.

2. System diagnostics and multiple language capability.

3. Standard clockwise bending direction.

4. Fully hydraulic clamping on clamp die and pressure die.

5. Drop-way hydraulic clamping.

6. Direct acting hydraulic pressure die with adjustable speed valve.

7. Maximum 500 sets of program storage,Maximum 32 bends for each program.

8. With Independent programmable speeds Y, B, and C axes.

9. Programmable material spring back settings for each bend angle.

10. Automatic release of tube prior to final bend.

11. Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.

12. Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.

13. Foot Pedal Cycle start.

14. With Air Cooling System.

15. One set of Tooling for Draw Bending.

16. Wiper die Bracket.

17. 1 Mandrel Rod.

18. Operation and Maintenance Manual.

19. Tool Box with Adjusted Tools.

20. Electric: As required

Technical parameter

Program

DW50CNC

Max bending R for carbon pipe is 1.5D

Ø50.8X 2.5t

Max bending R for s.s pipe is 1.5D

Ø44.4X 1.5t

Availability Length of bending pipe

2850mm

Max R for bending

220mm

Max angle for bending

185°

Bending process for every pipe

16

Working rate

Bend rate

Ma×25°/sec

Rotary rate

Ma×180°/sec

Feeding rate

Ma×700mm/sec

Working accuracy

Bend angle

±0.1°

Rotary angle

±0.1°

Feeding length

±0.1mm

Watt of oil press electrical machine

14mpa

Information inputting method

Axis (Y,B,C)

Bending method

Hydraulic

Max bending group

500

Power of rotary Servo motor

400 W

Power of feeding Servo motor

1300 W

Electrical motor power

5.5kw

Weight of machine

2500kg

Size L W H(CM)

430X80X115

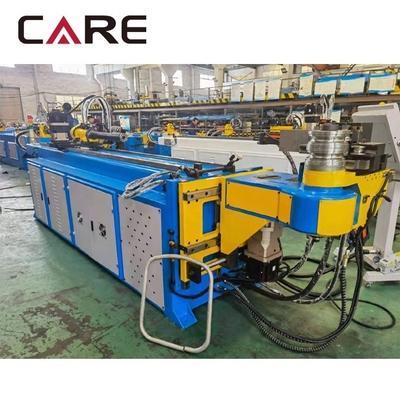

Machine photo
