Aperçu /Produits/Scie de Tableau de panneau/Horizontal High Precise Sliding Panel Saw Cutter Machine MWJ6128

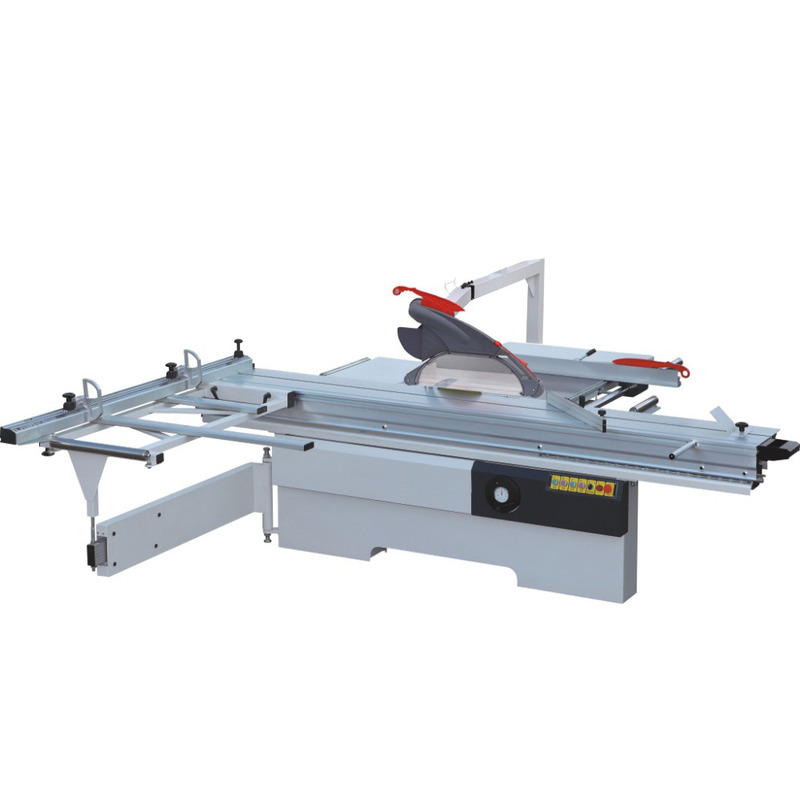

Horizontal High Precise Sliding Panel Saw Cutter Machine MWJ6128

1 Unit
MOQ
$7,000.00(1 - 4 Units) $6,650.00(>=5 Units)
Prix
Horizontal High Precise Sliding Panel Saw Cutter Machine MWJ6128
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Panel Saw
Use: Woodworking
Style: Horizontal
Place of Origin: Guangdong, China
Nom de marque: WEHO
Usage: Wood Cutting
Voltage: 220V/380V
Dimension(L*W*H): 3600 * 1800 * 1000mm
Warranty: 1 Year
Application: Woodworking machinery occasion
Weight (KG): 950 KG
Power (kW): 5.5
Key Selling Points: Easy to Operate
Max.Cutting Height at 90°(mm): 70mm
Max.Cutting Height at 45°(mm): 0mm
Max. Length of Workpiece (mm): 2800mm
Applicable Industries: Building Material Shops, Manufacturing Plant
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 YEARS
Core Components: Motor
After-sales Service Provided: Engineers available to service machinery overseas, Online support
Max cutting length: 2800 mm
Workpiece thickness: 70 mm
Main saw power: 5.5 KW
Scoring saw power: 0.75 kw
Main saw speed: 4000 / 5000 rpm
Main saw blade: 350 mm
Scoring saw blade: 120 mm
Main saw spindle diameter: 30 mm
Product name: High Precise Sliding panel saw machine
After Warranty Service: Video technical support, Online support
Local Service Location: None
Showroom Location: None
Certification: CE ISO
Informations de base
Place of Origin: Guangdong, China
Nom de marque: WEHO
Certification: CE ISO
Conditions de paiement et expédition
Packaging Details: 1. Package: Water proof film 2. Size: 3. Weight: 800 Kg
Supply Ability: 50 Unit/Units per Month
Description de produit
Product Exhibition
High Precise Sliding panel saw cutter machine MWJ6128
Designed to cut wood panel, ply chipboard, MDF&HDF, ABS board, PVC board and other board with the similar structure and hardness in high precision. It is a nice choice for the furniture production and decoration industry.
Product Paramenters
Product name
High Precise Sliding panel saw cutter machine MWJ6128
Model
MJ6128
MW6130C
Sliding table size
2800mm
3000mm
Max working length
2800mm
3000mm
Max working thickness
70mm
65mm
Max working thickness with 45° incline
/
45mm
Main saw diameter
350mm
350mm
Scoring saw diameter
120mm
120mm
Main saw spindle diameter
30mm
30mm
Scoring saw spindle diameter
22mm
22mm
Main saw motor power
5.5kw
5.5kw
Scoring saw power
0.75kw
0.75kw
Main saw spindle rotation speed
4000/5000r/min
4000/5000r/min
Overall dimensions(LxWxH)
3600x1800x1000mm
3600x1800x1000mm
Net weight
950kg
1080kg
Details Images
Micrometer adjustable dual position rip fence allows fast and accurate set-up for any work piece.With external scoring unit adjustments save set-up time.It also used by cutting sheets of aluminum, plastic and wood .Sliding block rising-down, precise,lightly and durable in use.
High Precise Sliding panel saw cutter machine MWJ6128
Large, accurate and easy installation sliding table makes precision cutting possible. Scoring blade eliminates all tear out on laminated plywood and other lumber coring it first.
High Precise Sliding panel saw cutter machine MWJ6128
Convenient, quick release fence. Powerful motor with aluminum housing enables heat to exhale efficiently.
Finish ground, heavy-duty cast iron table.
High Precise Sliding panel saw cutter machine MWJ6128
Extension panel at the back and both sides provide larger table surfaces. Blade guard with dust collection outlet to eliminate saw just more efficiently.
High Precise Sliding panel saw cutter machine MWJ6128
Sliding table comes with precision fence with lens magnifier.Easy to change any type of sliding tables.
High Precise Sliding panel saw cutter machine MWJ6128
4" dust hood onwoodworking sliding panel saw,Steel constructed cabinet for durability and stability.
Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer. This model is mainly used for cutting sheets into sized parts. Easily cut plywood and melamine sheets into cabinet components.Provided with steel linear bearing post support arm travels with the carriage for maximum support and precise cuts
Our Factory
Our Advantages
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design
and manufacture most of wood processing machines.
Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
FAQ
How to buy
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.

How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve,
our engineers will go to your place, and all charges paid by customer's side.

How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send
spart parts, and teach you to replace the parts.

Service contacting
Before buying, choose suitable model contact Whatsapp 00861337847781. After buying, technical supporting contact 008613326792205
