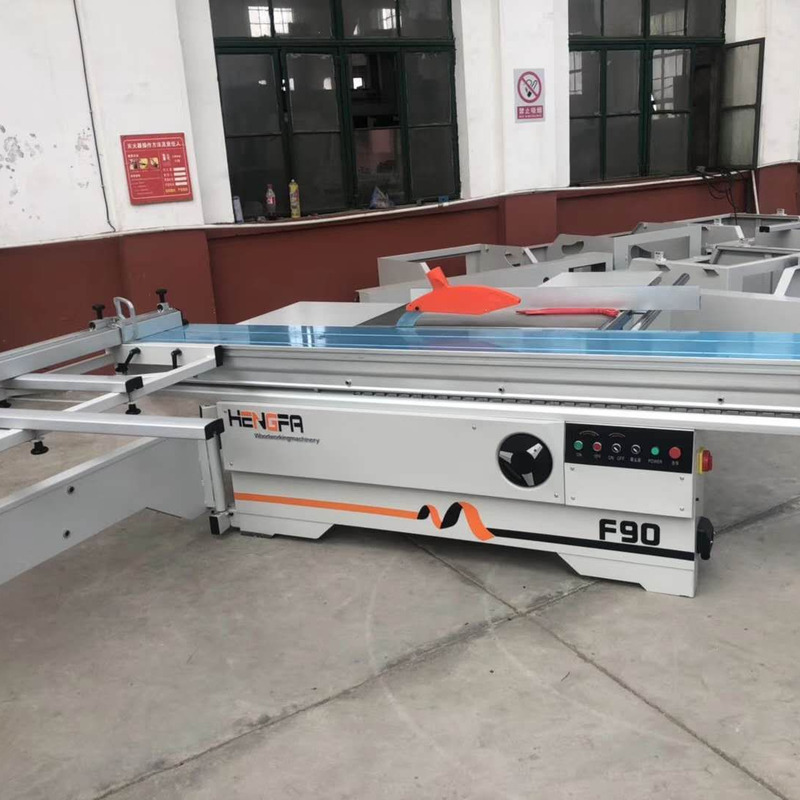

Precision Horizontal Panel Saw Machine Cutting MDF Board 90 Degree

1 Set
MOQ
Precision Horizontal Panel Saw Machine Cutting MDF Board 90 Degree
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Panel Saw
Use: wood panel cutting
Style: Horizontal
Place of Origin: China
Nom de marque: hengfa
Usage: cutting panel
Voltage: 380v/50hz/3phase
Dimension(L*W*H): 3350*3450*1100mm
Warranty: 1 year
Application: furniture factory
Weight (KG): 700 KG
Power (kW): 6.25
Key Selling Points: high precision
Max.Cutting Height at 90°(mm): 80mm
Max.Cutting Height at 45°(mm): 0mm
Max. Length of Workpiece (mm): 3200mm
Applicable Industries: Home Use, Other, Advertising Company, furniture factory,cabinet factory
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 6 months
Core Components: motor ,strucutre
working table size: 2800/3000/3200mm
tilt or 90 degree: 90 degree
main motor: 5.5kw
scoring motor: 0.75kw
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: none
Showroom Location: none
Informations de base
Place of Origin: China
Nom de marque: hengfa
Conditions de paiement et expédition
Packaging Details: PLYWOOD BOX PACKAGE
Supply Ability: 50 Set/Sets per Month
Description de produit

1.Applicable products:density board,particle board,artificial board, ABS board,PVC board,plexiglass, solid wood and other wood structure and similar hardness board.

2.Working principle:push the moving table forward and backward by hand to realize the sawing process. The marking saw is cut in advance.
3.The main saw blade can be cut by changing speed with tower wheel. To achieve the effect :manual push feed when light and labor saving,high machining accuracy , good saw cutting quality. 4.Structural advantages: the moving table guide rail adopts high strength extruded aluminum alloy material , high strength, no deformation, chrome-plated round rod structure,high positioning accuracy, the table surface adopts oxidation treatment, beautiful grinding.
Dimensions sliding table
2800/3000/3200*375 mm
Max cutting plate length
2800/3000/3200mm
Max cutting plate thickness
80mm
Tiling saw blade
90 °
Saw blade diameter
300mm
Deputy saw blade diameter
120mm
The main saw blade rotation speed
4500/6000rpm
Deputy saw blade rotation speed
6000/8000rpm
Spindle diameter
30mm
Spindle of scoring saw
20mm
Main motor power
5.5
Scoring power
0.75kw
Voltage
380v/50hz/3phase
Dimension
2800/3000/3200*1100*1200mm
