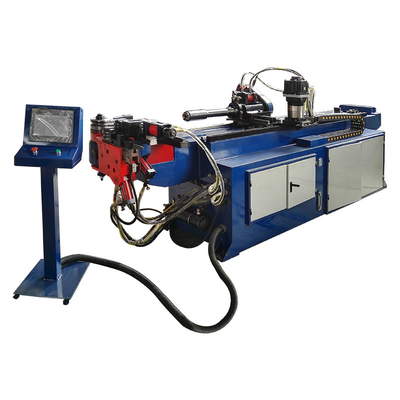

Building Material Stores SB-50CNC Automatic CNC Tube Bending Machine Square Tube and Iron Pipe Bending Machine

1 Set
MOQ
$20,000.00(1 - 4 Sets) $19,000.00(>=5 Sets)
Prix
Building Material Stores SB-50CNC Automatic CNC Tube Bending Machine Square Tube and Iron Pipe Bending Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Material / Metal Processed: ALLOY, Brass / Copper, Carbon steel, Stainless Steel, PVC, Aluminum, Plastic
Condition: New
Bending Radius (mm): 80 - 250
Max. Bending Angle (Deg): 190
Bending Precision (Deg): ±0.1
Place of Origin: Jiangsu, China
Automation: Automatic
Year: 2019
Power (kW): 5.5
Weight (KG): 2500
Warranty: 1 Year
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Printing Shops, Construction works , Energy & Mining, Advertising Company
Key Selling Points: Automatic
Showroom Location: None
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Other, Gearbox
model: SB-50CNC
Maximum bending radius: 300mm
Maximum bending angle: 190°
Machine size: 3200*1020*1400mm
Machine weight: 2500kg
Number of bends set for each tube: 16
Bending accuracy: ±0.1°
Weight: 2500kg
Certification: ce
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Informations de base
Place of Origin: Jiangsu, China
Certification: ce
Model Number: SB-50CNC
Conditions de paiement et expédition
Packaging Details: Plywood case
Description de produit

SB-50CNC single head hydraulic tube bender automatic cnc tube bending machine square tube and iron pipe bending machine

  • This model is an economical automatic three-dimensional CNC pipe bending machine, which can automatically bend, automatically feed and automatically tilt the angle. The three-dimensional pipe fittings can be automatically bent at one time. The feeding, tilting and bending three axes are all The servo motor and servo drive are used to control the drive, and the auxiliary push adjusts the matching speed through the regulating valve.
  • Each bend can be set to feed, bend, and rotate the three axes to move or move differently to avoid interference points, thus improving production efficiency. There are eight ways to choose from: 1 feeding → retreating → tilting; 2 (feeding + reversing) → tilting; 3 (feeding + reversing + tilting); 4 feeding → tilting → reversing; 5 ( Feeding + tilting → returning; 6 retreating → feeding → tilting; 7 tilting → retreating → feeding; 8 retreating → (feeding + tilting).
  • The electronic control system adopts well-known brand controllers and super large PLCs with strong performance and good stability.
  • Manual, semi-automatic, fully automatic operation mode can be set. Manual decomposing can be used during the trial to observe the interference point and modify the action.
  • Equipped with 10.4′′ color touch screen, man-machine dialogue operation, easy to understand. All elbow data can be input through touch screen.

FAQ

Choose us

Q: How to quickly choose the most suitable product for you?

A: You can check it on the product page, or contact customer service at +8618021646346 to tell the following details: What machine do you need? The size, thickness, material, and processing requirements of the workpiece, it is best to have a drawing of the workpiece, and we will provide a more professional machine according to your requirements.

Payment method

Q: What are your payment terms?

A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.

Delivery guarantee

Q: What is the delivery time?

A: Usually in stock, if you need to order fixtures and molds, we usually complete it within 7-15 working days. For customized products, please contact customer service to determine the exact time.

Use guarantee

Q: When I bought this machine, I didn't know how to use it. what do I do?

A: We will send English manuals, installation and operation videos with the equipment. If you still have questions, we can talk via phone, Whatsapp, WeChat and email.

Quality assurance

Q: How to ensure quality?

A: We have factories. We are industry experts and have been operating for more than 10 years. We always adhere to the policy of "high quality, all-round service".

Warranty service

Q: How long is the warranty period?

A: Within one year from the date of leaving the factory, if the part fails or is damaged

(Due to quality problems, wearing parts are excluded), our company provides these parts for free.

Company visit

Q: How do we reach your company?

A: Our company is located in Zhangjiagang City, Jiangsu Province, near Shanghai. You can fly directly to PVG Airport or Shanghai Hongqiao Airport. Welcome to visit our company.
