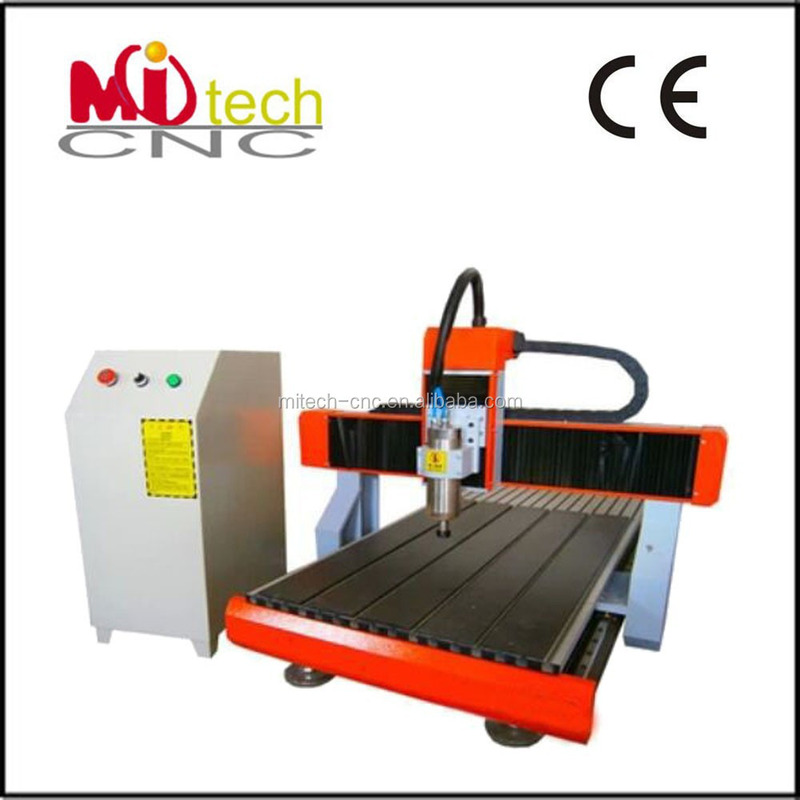

3 Axis Mini CNC Router Desktop CNC Router 6090 k6090t MITECH-6090

1 Set
MOQ
3 Axis Mini CNC Router Desktop CNC Router 6090 k6090t MITECH-6090
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
CNC or Not: CNC
Place of Origin: Shandong, China
Nom de marque: MITECH
Model Number: MITECH-6090
Voltage: AC220V/380V/50HZ
Dimension(L*W*H): 900 x 1050 x 850mm
Warranty: 1 years
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Power: 1.5kw watercooling spindle
Weight: 180KG
Working area: 600*900*80mm
Power for spindle: 1.5kw spindle
Cooling spindle: watercooling spindle
Motor: Stepper motor
working area is optional: 3050cnc, 4060cnc, or 6090cnc
Informations de base
Place of Origin: Shandong, China
Nom de marque: MITECH
Certification: CE
Model Number: MITECH-6090
Conditions de paiement et expédition
Packaging Details: Strong Plywood wooden case(1250*1000*950mm),Humidity-Proof Cloth Above Wooden Case,Oil Covered with Film on Machine Transmission, Steel Tubes On&Under Wooden Case
Supply Ability: 300 Set/Sets per Month
Description de produit

Product Description

3 axis cnc router desktop mini cnc router 6090 k6090t

Desktop cnc router advantage:

Cast Iron Sturcture, reliable and durable, stable and long-life.

Top-quality components, 1.5kw low noise watercooling spindle, Delta inverter, TBI ball screw, stepper motors , DSP control system and so on.Long-time working time, high precision and high efficiency.

Breakpoint specific memory.

Humanized and beautiful designing.

Easy and safe operation and low maintenance cost.

Many optional configuration and OEM service are available.

Desktop cnc router technical Parameters:

Model

MITECH-6090 CNC Router

X,Y,Z Working area:

600(x)mmx900(Y)mmx120(Z) mm

Table Size:

600x900 mm

Table Surface:

Aircraft aluminum T-slot table

Working table:

Cast Iron

Transmission

Ball screw for X Y Z-axis

Max. Power Consumption:

1.5KW (Without spindle)

Max. Rapid Travel Rate:

8000mm/min

Max. Working Speed:

5000mm/min

Spindle Power:

1.5kw water cooling spindle

Spindle Speed:

0-24000rpm

Driving motor:

Stepper motor

Working Voltage:

AC220V/50/60Hz, 1 Phs

Command Language:

G Code *Uoo *mmg *plt HPGL

Control System:

NcStudio (options: DSP /Mach3 PC Software)

Software Compatibility:

Type3/UcancameV9 software,(Option: Artcam software)

Running Environment Temperature:

0 - 45 degree

Relative Humidity:

30% - 75%

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

X,Y,Z Resetting Accuracy:

±0.01

X,Y Resolution

<0.01mm

Collet:

ER16

Guarantee

One year

Desktop cnc router applications:

Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
Architectural models: engraving fine window, fencing and wall patterns, etc.
Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
Label: engraving character, number, and other pattern on label for products and on product directly.
Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture

Related Products

MITECH have series cnc router,

We also can custom build a machine to meet the customers need.

if you have any special request, please contact with us.

MITECH-3030 MITECH-6060 MITECH-1212

MITECH-1325 MITECH-1325R MITECH-1836 ATC

MITECH-1325-2S MITECH-2010-8R MITECH-1625-4H

Packaging & Shipping

Package: Humidity-Proof Cloth Above Wooden Case,Oil Covered with Film on Machine Transmission, Steel Tubes On&Under Wooden Case.

Shipping: Safely and saving by sea

1.FOB----The nearest port is Qingdao port,and we can also delivery the machine to other port according to your request.
2.CIF-------Please tell me your destination port when you need CIF price.
3.If you need others, please tell me and I’m pleasure to do for you.

Our Services

1.Technical support by phone, e-mail or MSN around the clock

2.Friendly English version manual and operation video CD disk

3.7-15 working days after down payment or full payment

4.Machine will be adjusted before it is delivered , operation disk/CD was included.

5.Engineers available to service machinery overseas, seller and buyer discuss the charges

Company Information

MITECH is a professional CNC machinery manufacturer.We are well known for our superior quality and service in the field of engineering and manufacturing of CNC and Laser Equipment that includes: CNC Router, CNC Woodworking machine, CNC Advertising Router Machine, Stone CNC Router, Metal CNC Router,Cutting Plotter, Sign Plotter, CO2 Laser Engraver, CO2 Laser Cutting Machine, PVC Concave-convex Sign card Machine and so on.

FAQ

Q1: How can I get the best machine for me?
Just tell me your work,we can according to your needs recommend the suitable one.
Q2: This is the first time I use this kind of machine, is it easy to operate?
The PDF introduction and sample video will be send to you with the machine,it's in detail ,if you still confused with some operate ,we can make a Specialized teaching video for you.
Q3: If the machine has problem in my place, how could I do?
We offer remote assistance in 24 hours ,ensure can solve your problem in time .Change damage parts for free during warranty.
Q4: This model is not suitable for me, do you have more models available?

Yes, we have much models about cnc machine ,and we have our own factory also can make Custom models if you need with good price.
