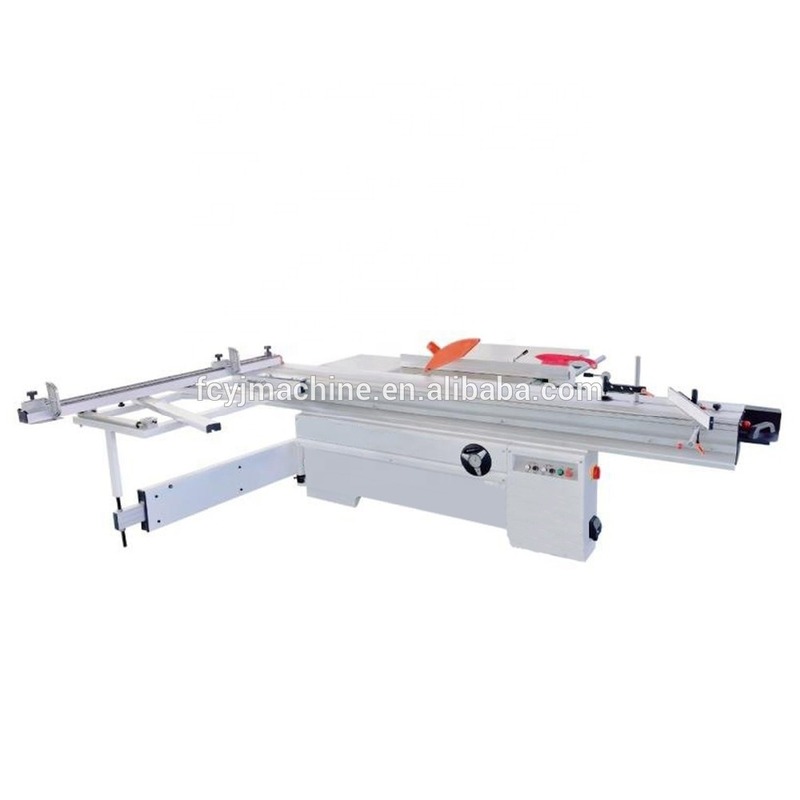

MJ6132Y horizontal wood cutting machine precise table panel saw

1 Set
MOQ
MJ6132Y horizontal wood cutting machine precise table panel saw
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Use: Woodworking
Style: Horizontal
Place of Origin: Shandong, China
Nom de marque: FCYJ
Usage: Wood Cutting
Voltage: optional
Dimension(L*W*H): 3250*3150*900mm
Warranty: 1 Year
Application: wood furniture production
After-sales Service Provided: Video technical support
Power: 4.75Kw/6.6kw
Weight: 800KGS
Certification: CE
Sliding table length: 3200mm
sliding table width: 375mm
tilting saw blade: 0-45°
max cutting height: 80mm
diameter of main saw blade: 300mm
main motor power: 4kw/5.5kw
scoring motor power: 0.75kw/1.1kw
speed of main saw spindle: 4000/6000 r.p.m
speed of scoring saw spindle: 8000 r.p.m
Informations de base
Place of Origin: Shandong, China
Nom de marque: FCYJ
Certification: CE
Conditions de paiement et expédition
Packaging Details: plywood box
Supply Ability: 200 Set/Sets per Month
Description de produit
Product Description

Horizontal Panel Saw Machine


Machine application:

This saw is used for cutting solid wood panel, chipboard, ABS board, PVC board ,organic glass board and other board which have the similar structure and hardness. It is the necessary working tool for furniture production and decoration industry.


SPECIFICATIONS
sliding table length
3200mm
width of cut between saw blade and rip fence
1250mm
sliding table width
375mm
scoring spindle diameter
20mm
tilting saw blade
0-45°
speed of main saw spindle
8000r.p.m
max cutting height
80mm
weight
800KGS
diameter of main saw blade
300mm
Overall dimension
3250*3150*900mm
diameter of scoring saw blade
120mm
Machine voltage
optional
main motor power
4kw/5.5kw
scoring motor power
0.75kw/1.1kw
main spindle diameter
30mm

Main Features


1)The sliding table guide rail is steel bar structure, high-precision and durable and made of high-strength extruded aluminum alloy, sliding table is high in strength and won't be bended.


2)With oxidation treatment, sliding table surface is beautiful and enduring.


3)The machine body is laser cutting, and it is with special heat treatment, which make the machine run more stable and lower noise


4) it will be power off when the machine door is opened.

Detailed Images

Machine Parts

Name: Ruler


Machine Parts

Name: fine-tuning Rip Fence

Machine Parts

Name: Control Panel

Main Parts

Name: sliding table

Machine Parts

Name: inner structure

Machine Parts


Name: Bracket


Packing & Delivery
Packaging
Size
the total dimension is 3CBM
Weight
800kgs



Packaging Details
The normal package is plywood box(Size: L*W*H).

It is packed in two plywood boxes.

If container is too tigher,we will use pe film for packing or pack it according to customers special request.
