Building Material Shops High Quality and Popular QC12K-6*2500 Beam Oscillation CNC Shear Machine

SWING BEAM SHEAR

GUILLOTINE SHEAR

SERVO GUILLOTINE SHEAR

sheet metal hydraulic shearing machine qc12y 4x2500

E21s system

Hand Wheel

Swing Shear Parameters

Back gauge & blade

Feeding table & Pneumatic Clamp

Shaft & gear E-stop button

Back gauge motor

Siemens motor

American sunny pump

Germany JS bite type fittings

Electric cabinet

Lead time

Payment Method

Anhui Runbang Heavy Industry Machinery Co., Ltd.

Manufacturing Part

Material Stock Part

Warehouse Part

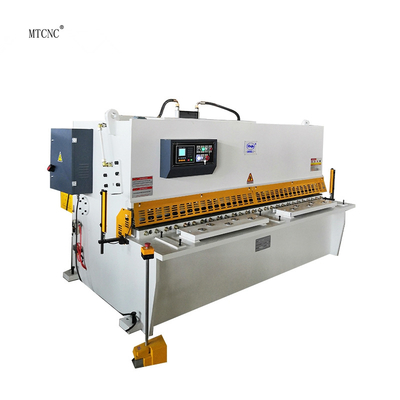

Name: Building Material Shops High Quality and Popular QC12K-6*2500 Beam Oscillation CNC Shear Machine
Brand: MTCNC
SKU: MTCNC
Price: 12 USD
Availability: InStock
Rating: 4.6 (132 reviews)
ISBN: 19240967

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Max. Cutting Width (mm): 2500 mm

Max. Cutting Thickness (mm): 8 mm

Automatic Level: Semi-automatic

Shearing Angle: 0.5-1.5

Blade Length (mm): 4000 mm

Backgauge Travel (mm): 10 - 800 mm

Throat Depth (mm): 120 mm

Condition: New

Nom de marque: MTCNC

Power (kW): 5.5 kW

Weight (KG): 3150 KG

Place of Origin: Anhui, China

Voltage: 220V/380V

Dimension(L*W*H): 3040*1550*1550mm

Year: 2020

Warranty: 2 years

Key Selling Points: Automatic

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction worksÂ , Energy & Mining, Advertising Company

Showroom Location: None

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 24 months

Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox

CNC System: E21S

Type: Shearing Machines

Name: hydraulic guillotine shears

Control system: durable hydraulic guillotine shears

Function: metal hydraulic guillotine shears

Hydraulic System: QC11K hydraulic sheet metal guillotine

Color: Blue White Black Red Yellow

Electrical components: Schneider

Seal Ring: Japan NOK

Ball Screw/ Liner Guide: HIWIN

After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support

After Warranty Service: Video technical support, Online support, Spare parts

Local ServiceÂ Location: None

Certification: CE

Informations de base

Place of Origin: Anhui, China

Nom de marque: MTCNC

Certification: CE

Conditions de paiement et expédition

Packaging Details: Plastic film,plywood box China supply hydraulic guillotine shearing machine for sale

Supply Ability: 10 Set/Sets per Month

Description de produit

0.5mm precision

0,2mm precision

0.02mm precision

Product Description

▶ Maximum cutting accuracy welded rigid structural steel one piece steel frame ▶ Digital NC control unit ▶ Automatic motorized back gauge 750mm range (stroke) ▶ Schneider-electrical components with ventilations electrical cabinet ▶ 4 Cutting edges blade produced from high alloy steel ▶ Mechanical sheet hold down system holds the sheet in place ▶ Simple and Easy operable Blade Gap adjustment system ▶ Roller bearings on the table to feed sheets ▶ Front Support Arms with scale ▶ Foot pedal control unit for Single or continuous cutting operations ▶ Back side safety fence ▶ illuminations cutting line

X axis numeric control, Blade angle button control

Blade clearance control

Great choice for thin plate less than 8mm

E21 system features
■ HD LCD display, with both Chinese and English language options
■ Backgauge control:Smart positioning, can also be manually adjusted by hand positioning device.
■ Cut Stroke: Built-in shearing time relay
■ Shear angle: Built-in shear angle adjustment function, eliminating the angle indicators and buttons
■ Blade gap: encoder feedback, time display blade gap size
■ Having a key parameter backup and restore function
■ All keys on the panel are micro-switches.

Detailed Images

ball screw linear guide, 9CrSi, 6CrW2Si

rolling balls, 10 pieces clamp for 2500mm shear

made by wear resistant material

with precise Estun encoder for ESTUN E21 system

Good for hyraulic system running

precise pressure control

avoid oil leak

Siemens electric components

Packing & Delivery

4 to 8 mm plate shear 15 days

10 to 50 mm plate shear 20 to 40 days

30% T/T in advance, the balance paid before shipping
irrevocable L/C at sight

Packaging
Size	384017101620mm
Weight	5.6 Ton
Packaging Details	Plastic film packge plywood box package
Delivery Details	FCA to your consignee FOB PORT to Shanghai CIF PORT in your country

Our Company

MTCNC concentrates on the research, development, manufacture, sale and service in metal fabrication equipment.

We supply metal sheet shearing, bending, punching, rolling machine tool. and complete metal fabrication solution.

gantry milling machine

gantry drilling machine

gantry boring machine

Different Size for press brake and shearing machine with different pressure

Abundant Stock

Certifications

Q & A

On-sales service
Currency	Dollar, Euro, RMB,
Payment Method	Credit Card, T/T, L/C, Western Union, Paypal.
Payment Term	30% in advance,70% before delivery
Inspection Service	welcome factory inspection or video & picture inspection
Delivery Serice	We can deliver to Shanghai port or to your country port or your address
Delivery term	EXW, CFA, FOB, CIF, DDU, DDP

Personne à contacter :	Cheng
Télécopieur :	86-0551-16538396

After sales service

Technical support

Within one day

Installation service

Simple installation by electrical diagram, 120 USD per day overseas installation

Training service

free trainning in our factory, 120 USD per day overseas trainning

Quality guarantee

1 year warranty, lifetime service. free spare parts for 3 years use

Response rate

100% within 12 hours
