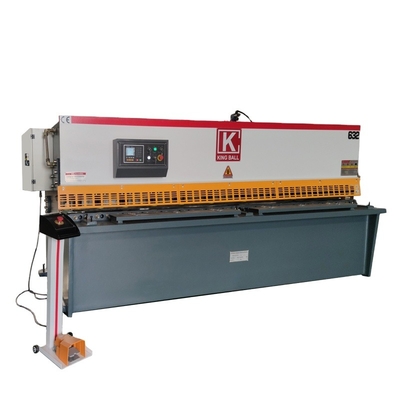

Building Material Shops CE Certificate Hydraulic Swing Beam Shear Machine QC12Y-25X2500 With E21s NC Controller

1 Set
MOQ
$19,000.00(1 - 1 Sets) $17,000.00(>=2 Sets)
Prix
Building Material Shops CE Certificate Hydraulic Swing Beam Shear Machine QC12Y-25X2500 With E21s NC Controller
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Max. Cutting Width (mm): 2500 mm
Max. Cutting Thickness (mm): 25 mm
Automatic Level: Fully Automatic
Shearing Angle: 3°
Blade Length (mm): 2600 mm
Backgauge Travel (mm): 20 - 800 mm
Throat Depth (mm): 150 mm
Condition: New
Nom de marque: KingBall
Power (kW): 37 kW
Weight (KG): 19000 KG
Place of Origin: Jiangsu, China
Voltage: Customizable
Dimension(L*W*H): 3450*2650*2650 mm
Year: 2020
Warranty: 2 years
Key Selling Points: High-accuracy
Applicable Industries: Building Material Shops, Machinery Repair Shops
Showroom Location: None
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Color: Optional
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Viet Nam, Philippines, Indonesia, Pakistan, India, Thailand, Malaysia
Certification: CE and ISO
Informations de base
Place of Origin: Jiangsu, China
Nom de marque: KingBall
Certification: CE and ISO
Conditions de paiement et expédition
Packaging Details: plastic cover
Supply Ability: 1 Set/Sets per Week
Description de produit
Product Description
Hydraulic Swing Beam Shearing Machine
Model: QC12Y-25X2500
2 Axes CNC Control(X, Y)
X: Backgauge front and back; Y: Ram stroke
W: Worktable crowning (optional)

Main functions and features

● The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation. ● Indicator-based adjustment of gap of blade is convenient and fast.  ● The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier. ● The machine uses protection fence for safe operation.  ● Digital display device for size of back gauge and shearing times available.

Technical Parameters
No.
Item
Parameter
Unit
1
Cutting thickness
25
mm
2
Cutting Length
2500
mm
3
Backgauge Range
800
mm
4
Material Strength
≤450
N/mm²
5
Shear Angle
3
°
6
Strokes
≥5
(min-1 )
7
Main motor power
37
KW
L 3450
mm
8
Overall dimension
W 2650
mm
H 2650
mm
9
Machine weight
19000
kg
Detailed Images
E21S Controller
Backgauge and block control Control for general AC motors, frequency inverter Intelligent positioning Stock counter Holding/decompression time setting Program memory of up to 40 programs Up to 25 steps per program One side positioning Retract function One key backup/restore of parameters mm/inch Chinese /English
Main Configuration
Name
Producer
CNC controller
E21S Estun China Brand
Main motor
Siemens Germany brand
Electrical components
Schneider France brand
Gear pump
Sunny USA brand
Seal ring
NOK Japan brand
Hydraulic system
Boschrexroth Germany brand
Ball screw
HIWIN Taiwan brand
Tubing connector
EMB Germany Brand
Variable frequency drive
Shihlin Taiwan Brand
The standard accessories are in the below: 1.Anchor bolt 2.Hex nut 3.Seal ring 4.Washer 5.Grease gun 6.Allen wrench 7.Feeler gauge 8.Foot switch 9.Front support arms 10.Electrical box key, control panel key 11.Operation manuals
Packing&Shipping
Shearing machine is usually packaged in plastic film,if you need other packaging,we can also meet you.
Our Service

Pre-sales services:

1. inquiry and consulting support 2. sample testing support 3. visit our factory

After-sales services:

1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery overseas
