Condition:
New
Range of Spindle Speed(r.p.m):
1 - 24000 rpm
Positioning Accuracy (mm):
0.02 mm
Number of Axes:
3
No. of Spindles:
Single
Working Table Size(mm):
600*900

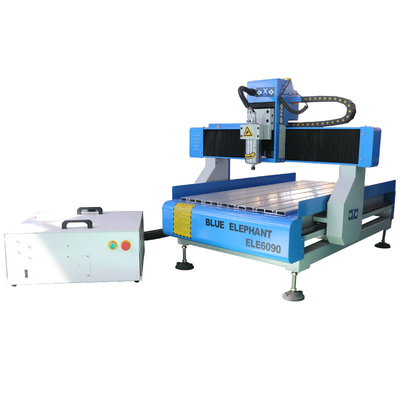

Machine Type:
CNC Router
Travel (X Axis)(mm):
600 mm
Travel (Y Axis)(mm):
900 mm
Repeatability (X/Y/Z) (mm):
0.02 mm
CNC or Not:
CNC
Place of Origin:
Shandong, China
Nom de marque:
BLUE ELEPHANT
Voltage:
220V, 1phase, 50-60HZ
Dimension(L*W*H):
according to your order
Weight (KG):
1000
Control System Brand:
DSP, RichAuto
Warranty:
1 Year
Key Selling Points:
Easy to Operate
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pump
Application:
MDF WOOD ACRYLIC ALUMINUM
Feature:
Small Workpiece
Working area:
600*900mm
Spindle:
1.5kw Changsheng water cooling spindle
Motor & Driver:
Leadshine mix servo motor & driver
Traveling speed:
7000mm/min
Working speed:
7000mm/min
Inverter:
1.5kw Taiwan Delta Inverter
Linear rail:
Taiwan HIWIN linear guide 20#
Control box:
Inner box
