Aperçu /Produits/glissant le panneau a vu/Horizontal Wood Slitter Woodworking Sliding Table Panel Saw With Good Precision For Home Or Furniture

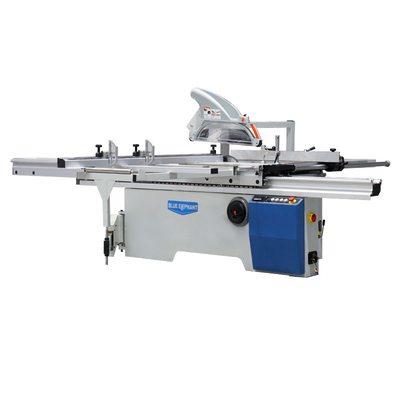

Horizontal Wood Slitter Woodworking Sliding Table Panel Saw With Good Precision For Home Or Furniture

1 Set
MOQ
$2,700.00(1 - 19 Sets) $1,800.00(>=20 Sets)
Prix
Horizontal Wood Slitter Woodworking Sliding Table Panel Saw With Good Precision For Home Or Furniture
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Panel Saw
Use: Woodworking
Style: Horizontal
Place of Origin: China
Warranty: 1 Year
Application: furniture industry or home use
Weight (KG): 800 KG
Key Selling Points: Easy to Operate
Max.Cutting Height at 90°(mm): 100mm
Max.Cutting Height at 45°(mm): 50mm
Max. Length of Workpiece (mm): 3100mm
Applicable Industries: Garment Shops, Manufacturing Plant
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
Dimension of sliding table: 800/3000/3200*375mm
Power of main saw spindle: 5.5kw
Diameter of main saw blade: 300*30
Power of grooving saw: 0.75kw
After-sales Service Provided: Field installation, commissioning and training
After Warranty Service: Video technical support
Informations de base
Place of Origin: China
Conditions de paiement et expédition
Packaging Details: 1.Outside package:Standard marine export plywood case. 2.inner package:Stretch film and plastic film for humidity. We can package according to your requests.
Description de produit
Related Video
Product Features
This table saw is mainly used for longitudinal sectioning, cross-section or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blackboard, spliced solid wood board and plastic board to obtain a board that meets the specifications.
Technical Parameters
Dimensions
3200*2540*900mm
Sliding table size
3200*375mm
Sawtooth length
3000mm
Sawtooth width
1200mm
Sawtooth thickness
78mm
Main saw diameter
300mm
Scribing saw diameter
120mm
Main saw speed
4000/6000rpm
Scribing saw speed
7000rpm
Spindle diameter
30mm
Counter spindle diameter
20mm
Main motor power
5.5kw
Counter motor power
0.75kw
Saw blade angle
0-45°
Applied Industries
1. Wood furniture industry Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard，Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making. 3. Die industry A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
