Aperçu /Produits/Routeur de bureau de commande numérique par ordinateur/Factory Ball Screw Transmission Wood Machine 6090 Small 4 Axis CNC Router

Factory Ball Screw Transmission Wood Machine 6090 Small 4 Axis CNC Router

1 Set
MOQ
$2,800.00(1 - 2 Sets) $2,600.00(3 - 4 Sets) $2,400.00(5 - 9 Sets) $1,900.00(>=10 Sets)
Prix
Factory Ball Screw Transmission Wood Machine 6090 Small 4 Axis CNC Router
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Range of Spindle Speed(r.p.m): 6000 - 24000 rpm
Positioning Accuracy (mm): 0.02 mm
No. of Spindles: Single
Working Table Size(mm): 600×900
Machine Type: CNC Router
Travel (X Axis)(mm): 600 mm
Travel (Y Axis)(mm): 900 mm
Repeatability (X/Y/Z) (mm): 0.02 mm
Spindle Motor Power(kW): 2.2
CNC or Not: CNC
Place of Origin: Shandong, China
Nom de marque: QUICK
Voltage: 220v
Dimension(L*W*H): 1400*1100*1200mm
Power (kW): 11
Weight (KG): 200
Control System Brand: NC Studio, Mach3, DSP
Warranty: 1 Year
Key Selling Points: Easy to Operate
Applicable Industries: Manufacturing Plant, Home Use, Advertising Company
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, spindle
Product name: 6090 4 axis cnc router
Control system: DSP
Keywords: 6090 4 axis cnc router
Motor: Stepper Motor
Inverter: 2.2kw
Table: T-slot Table+PVC
Color: White
Command: G.code
Function: Cutting Engraving Non-metal Materials
Z Structure: Taiwan Ballscrew
After-sales Service Provided: Field installation, commissioning and training
Local Service Location: Russia, Thailand, Australia
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Showroom Location: Russia, Thailand, Australia
Marketing Type: Hot Product 2019
Certification: CE/ISO
Informations de base
Place of Origin: Shandong, China
Nom de marque: QUICK, NC Studio, Mach3, DSP
Certification: CE/ISO
Conditions de paiement et expédition
Packaging Details: Packaging Details: 1.Whole film packaging machine; 2.Anti-collision package edge; 3.Fumigation-free plywood wooden box with the iron-binding belt.
Description de produit
Ball screw transmision small wood machine 6090 4 axis cnc router
Product Description

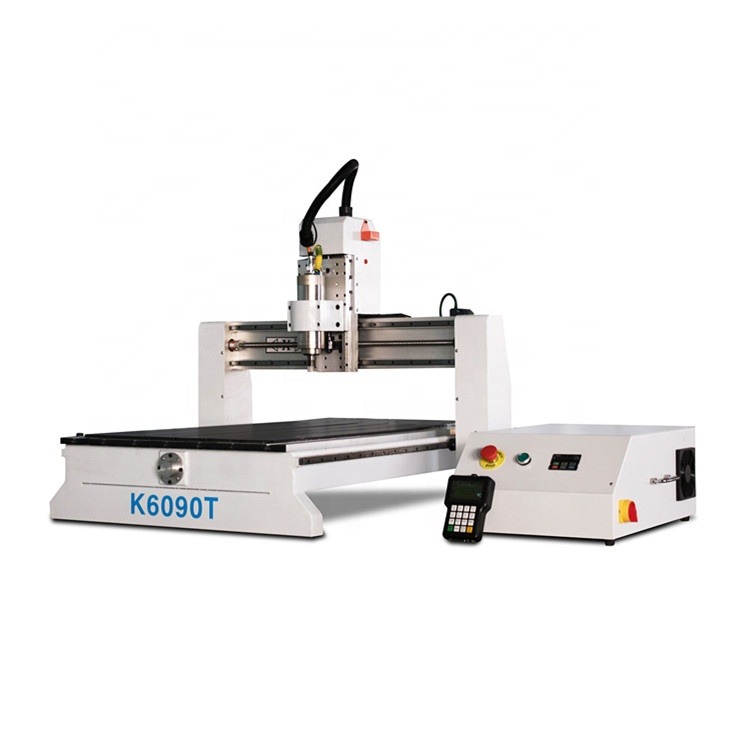

China jinan Quick-Fulltek cnc,We have very wide range of products,from mini machine 6090 to machining centers with large size.small wood machine 6090 4 axis cnc router,We also named it K6090T.is a Mini Desktop 6090 CNC Router for Wood/Pvc/AcrylicCutting/Engraving,This Small model cnc Machine,which is a very popular model in our factory.and it can add rotary,so we also say it 6090 4 axis cnc router.
Specification
Wood PVC Mini CNC Milling Machine Configurations
X-Y-Z axis working size
600*900*150 mm
Repositioning resolution
0.02 mm
Max. speed
8m/min
Max. cutting speed
5m/min
Spindle
2.2kw water cooling
Spindle speed
6,000 – 24,000 RPM
Inverter
2.2kW Delta
Driver and motor
Stepper
Command code
G code
Computer interface
USB 2.0
Control system
Dsp A11
Dust hood
Include
Auto tool touch-off
Include
Table
T-slot
Option
Rotary:80mm diameter
Mist cooling
Dust collector
Machine details

2.2kw spindle

Domestic top brand factory, good stability, long service life

Ball screw

Each ball screw is driven by a stepper motor and moves the

Cabinet

It covers a small area and saves space

Stepper motor

Domestic production, excellent performance, long service life

Rotary

Rotary :80mm diameter

DSP Control

Easy operate
Application
small wood machine 6090 4 axis cnc router application:
1.It can applied to the advertising field.Sigh marking,Acrylic engraving and cutting,Crystal word marking,and other advertising material marking.
2.Wood field:Wave plate,Plywood,MDF and other wood materials.
3.3D relief.It can process the 3D relief on wood,stone,soft metal and other.
4. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic,sheeting, PVC pipe, wooden planks and other non-metallic mold.
Product processing
Quick-Fulltek cnc product processing
Machining parts produced by high precision CNC machine and inspected by specific measure tools in a extremely restricted standard.
Panting warehouse will do coated spray work on all our metal parts under government environment policy. Eletricity parts will be assembled together by our work in an quite amazing layout.
We will do calibration during all machining parts assembling work to ensure the machine in best precision and more durable. After all producing work ,our engineer will do a quality test for all of our machine.
Company Profile
Jinan Quick-Fulltek cnc
Jinan Quick CNC Router Co., Ltd. was founded in 2006, Our company locates in Lingang economic develepment zone in Jinan, factory floor space is about 15,000 square meters.
If you are interested in our products, please no hesitate to contact us for future cooperation. We hope to get a mutual benefit with you in the near future.
Our team
We have more than 300 workers including 30 professional designers, 35 experienced after sale service engineers and 50 sales persons.We are one of the best CNC router suppliers in China.With 15 years experence ,our machines are known for their high precision, outstanding reliability, ease of operation and simple maintenance.
Exhibition
You can see Jinan Quick at exhibitions all over the world!
For example: Beijing, Shanghai, Guangzhou, Indonesia, Canada, Russia, etc.
Related Machinery
5 AXIS CNC MACHINING CENTER
UE-481 ATC CNC MACHINE
K6090 MINI CNC MACHINE
We are specializes in R&D and production of various cnc equipment, such as 3 axis cnc, ATC cnc, automatic load and unload cnc,4 axis, 5 axis, PTP, panel furniture cnc. All series machines are with one-year’s warranty.
Certification
Jinan Quick-Fulltek cnc
Jinan Quick cnc company has been approved by ISO 9001:2000 quality control system and all product got CE certificate .
Buyer feedback
Thanks for our customers all over the world!
We are so appreciate of all kindly feedback from our dear customer, Your trust is our motivation power.No matter where is our customer come from or if they had personally come to visit us,we are always stand together.
Quick cnc machine Packing&Shipping
All the package are fumigation-free and extremely stable in case of any collision occurs during shipping on sea.We equipped with thin-film and waterproof film to against all unknown environment in containers.
The loading of cargo usually takes at least 2 forklift to finish to ensure package keep well before delivery.
Support: DDP/EXW/FOB/CIF Shipping by sea, generally from China Qingdao port (optional:Dalian, Guangzhou, Shanghai etc.),to Ports all over the world.
