Aperçu /Produits/presse plieuse cnc/Construction Material Small NC Stores KEC 30t Hydraulic Press Brake

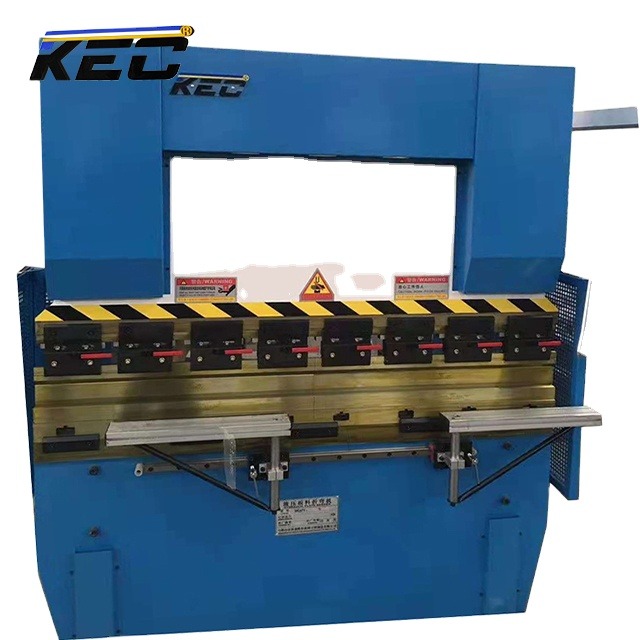

Construction Material Small NC Stores KEC 30t Hydraulic Press Brake

1 Set
MOQ
Construction Material Small NC Stores KEC 30t Hydraulic Press Brake
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Slider Stroke (mm): 80 mm
Automatic Level: Fully Automatic
Throat Depth (mm): 200 mm
Machine Type: Torsion Bar
Length of Working Table (mm): 1600
Width of Working Table (mm): 900 mm
Dimension: 1700x900x1800
Condition: New
Place of Origin: Anhui, China
Nom de marque: KEC,YADUAN
Material / Metal Processed: Brass / Copper, Carbon steel, Aluminum, Plastic
Automation: Automatic
Extra Services: Cut To Length
Year: 2021
Weight (KG): 1200
Motor Power (kw): 3 kw
Key Selling Points: High-accuracy
Warranty: 3 years
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Showroom Location: Canada, United Kingdom, United States, Japan
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 3 years
Core Components: Motor, Pump
Power: 3 KW
Color: Blue and white
CNC or not: Yes
Name: small press brake
Voltage: 380V/220V/415V
Main Motor: Simiens
Controller: TP10S
Electrical components: Schneider
Bending thickness: 4mm
Bending length: 1600mm
Certification: ce
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Video technical support, Online support
After Warranty Service: Video technical support, Online support, Field maintenance and repair service
Local Service Location: Canada, United Kingdom, United States, Japan
Informations de base
Place of Origin: Anhui, China
Nom de marque: KEC,YADUAN
Certification: ce
Conditions de paiement et expédition
Packaging Details: Nude packing for FCL. Plywood packing for lcl.
Description de produit
Product Description

KEC Small hydraulic NC press brake WC67Y30T/1600 metal sheet bending machine

SMALL HYDRAULIC PRESS BRAKE NC SERIES
Generalcharacteristics apply to all KEC/yaduan hydraulic press brake series:
High mechanical strength and great rigidityis due to integrated welded steel structure.
Hydraulic powered system is to realizeprecise working power, easy and safe operating.
Pre-installed press brake punches with 88° angle and solid block lower die with four face multi “V” frame.
Fast changing press brake punch holders are applied to all KEC press brakes.

Back gauge is equipped with Euro-made ballscrew and slick rod for fast and precise back gauge transmission.
Finger pin for flexible and precise positioningof back gauge can be adjusted up and down as per needs.
Steel/nylon front supporting arms are equippedto transfer workpieces.
KEC has the capability providing customizedtools(blades & molds) for users' special requirements.

Furtherdevices besides NC servo system can be equipped:
NC servo system, fitted with 100program-memory(25 sequences per progr.),controls hydraulic system and themovement of back gauge
to achieve efficient and highly precise positioning.
Safety device with light/laser guards thefingers well.
Deflection compensation system controlledby NC system beneath the work table is for more precise bending results.
Manufacturing Technique

Feature:

1.Streamlined design originated from EU, the machine frame is a whole through over all welding and annealing treatment.
2.Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems
caused by leakage of hydraulic fluid.
3. Using international brand parts and cnc parts.
4. Visual operating system,easy operation,convenient,multi-functions and practical.
5. All parts are produced by cnc produce center,according to standard drawing.
6. High executive force,high standard and high professional machine assembled team.
7. Power safeguard design,with light curtain protection,open door power-off function,more safety when operating.
8. Fashion outlook,delicate,and beautiful,machines are compact design,small floor space,easy operation.
9. Providing comprehensive bending program for all press brake,shearing machine user.
10.Replaceable worktable punch and die sets,no welding,forging and precision grinding.
11. Fast changing press brake punch holders.
12.Thickened slider and the vertical plate, to ensure the stability of the machine tool and reduce the elasticity.
Specification
Model
Nominal Force (KN)
Worktable length (mm)
Distance Between Columns (mm)
Throat Depth (mm)
Slider Stroke (mm)
Max. Open Heigth
Working Power (Kw)
Dimension
 (LxWxH mm)
40t/2200
400
2200
1775
250
100
320
5.5
2300×1500×2000
40t/2500
400
2500
1975
250
100
320
5.5
2600×1500×2000
63t/2500
630
2500
2095
250
120
360
5.5
2600×1600×2300
63t/3200
630
3200
2570
250
120
360
5.5
3300×1600×2300
80t/3200
800
3200
2565
320
120
360
7.5
3300×1700×2300
80t/4000
800
4000
3165
320
120
360
7.5
4100×1700×2300
100t/3200
1000
3200
2560
320
120
360
7.5
3300×1800×2400
100t/4000
1000
4000
3165
320
120
360
7.5
4100×1800×2500
125t/3200
1250
3200
2550
320
120
360
7.5
3250×1920×2450
125t/4000
1250
4000
3450
320
120
360
7.5
4100×1920×2500
160t/3200
1600
3200
2540
320
180
440
11
3300×1600×2600
160t/4000
1600
4000
3140
320
180
440
11
4100×2000×2600
160t/6000
1600
6000
4740
320
180
440
11
6100×2000×2600
200t/3200
2000
3200
2540
320
250
530
11
3300×2100×2800
200t/4000
2000
4000
3140
320
250
530
15
4100×2100×2900
200t/5000
2500
5000
3120
400
250
530
15
5100×2100×3000
250t/4000
2500
4000
3120
400
250
560
18.5
4100×2200×3500
250t/5000
2500
5000
3920
400
250
560
18.5
5100×2200×3500
250t/6000
2500
6000
4720
400
250
560
18.5
6100×2200×3500
300t/5000
3000
5000
39100
400
250
560
22
5100×2600×4000
300t/6000
3000
6000
4710
400
250
560
22
6100×2600×4000
300t/7000
3000
7000
5620
400
250
560
22
7100×2600×4400
350t/6000
3500
6000
5100
400
250
560
30
6100×2600×4200
350t/7000
3500
7000
5620
400
250
560
30
7100×2600×4500
400t/4000
4000
4000
3100
400
300
620
30
4100×2700×3800
400t/6000
4000
6000
4280
400
320
630
30
6100×2800×4200
500t/5000
5000
5000
4100
400
320
630
37
5100×3000×4400
500t/6000
5000
6000
4820
400
320
630
37
6100×3000×4700
500t/7000
5000
7000
5620
400
320
630
37
7100×3000×4900
600t/6000
6000
6000
4820
400
320
630
45
6100×2965×4700
600t/7000
6000
7000
5620
400
320
630
55
7100×2965×4900
Details Images
Ball Screw and linear guide
Fast change punch holders
TP10S
Inductive switch
Inductive table
Hydraulic Valve
Schneider electrics
Schneider electrics
Electric box electricity protector
Siemens main motor
Shark Toolings punch and die set
Electromagnetic
Exhibition
Yaduan(KEC/PDT) Machine had been devoted in hydraulic press brakes and shears since Year 2008, with factory scale of more than12000sqm.

We have sheet metal fabriction machine(maily press brakes and shears) manufacturing capacity of more than 270 sets per year!

Decent quality, keen aftersales and direct price is our core value for global market.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Yaduan(KEC/PDT) Machine had been devoted in hydraulic press brakes and shears since Year 2008, with factory scale of more than12000sqm.

We have sheet metal fabriction machine(maily press brakes and shears) manufacturing capacity of more than 270 sets per year!

Decent quality, keen aftersales and direct price is our core value for global market.
FAQ
KECMT FAQ
1. Q: We see many Chinese brands there in market, are they all manufacturers? What about KEC/yaduan?
A: It is true that among all those Chinese brands, most of them are trading brands.
But KEC/yaduan is the real manufacturer that has been making hydraulic press brakes and shearing machines since 2008.

2. Q: How to get an accurate quotation from KEC ?
A: Simply provide us the details of material , max thickness and max width you would like to work with.
Send email to roger@kecmt.com or call directly +86-18355321931.

3. Q: Can you do OEM service ?
A: Sure. your design or other requirements are accepted , your own logo can be effected on the machine.

4. Q: What's the shipping cost from China to your country ?
A:We can send machine to your port or door address by sea. Please kindly tell us your nearest port or address with postcode. We work with several reliable shipping agents to arrange global shipping in multiple ways.

5. Q: What is the average lead time?
A:For stocks, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the depositpayment.The lead times become effective upon deposit receipt. If our lead times do not work with your deadline, We could arrange special urgent production so to catch our deadline. In all cases we will try to accommodate your needs. In most cases we are able to manage quick delivery.

6. Q: Can you supply the relevant shipping documentation?

A:Yes, we can provide most documents including Bill of lading;Certificates of Analysis /Conformance; CE certificate, COC certificate;Insurance; Country of Origin;Commercial invoice;Packing listand other export documents whatever required.

7. Q: Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable

8. Q: How to operate the machines ordered ?
A:Videos of the machines before shipment in our factory will be sent to you directly.

9. Q: What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.

10. Q: What is the product warranty?
A:Normally 3 years. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.

11. Q: Do you guarantee safe and secure delivery of products?
A:Yes, we always use high quality export packaging. We also use specialized solid packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Special packaging and non-standard packing requirements will charge additionally.
