Ruler Factory Automatic Knife Bending / Creasing Bending Machine

What is die-cutting?

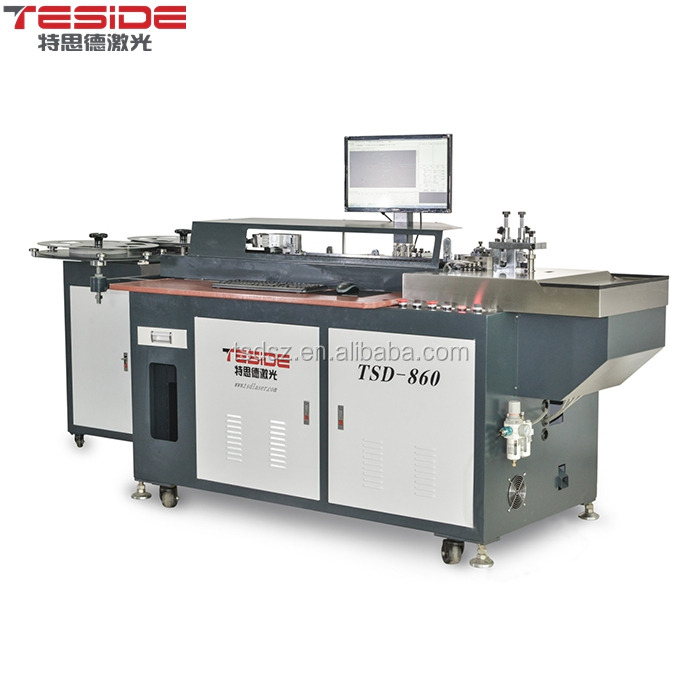

TSD-860 Auto Cutting Rule Bending and Creaing rule Cutting Machine

Auto bender TDS -860 model to make cutter blades

 auto knife bending / creasing rule bending machine

Functions and usage:

Two-track design, can work at one time to improve efficiency.
Auto bender track can realize functions of bending, bridge, flat cutting, front & back lipping, fast and precision.

Auto cutter track can realize auto-bridge and flat cutting, simple and practical.

Panasonic Servo motor system + Ball-screw guide- rail in design, eradicate skidding and dislocated.

Unique imported mould tool design, easy to bend pattern, high precision of size, durable

In order to guarantee precision and long-life span, transmission and control parts are imported

Self-developed latest bending control system, easy to operate and upgrade available.

Fully English interface, easy to learn how to operate, make bending work easy.

It can be installed soon after bending patterns form the machine, no need extra more hard work.

It’s widely used in box mould, doll mould bending, sticker die…etc.

Exactly to realize fully automatic bending, help to save plate making time.

It’s the first creation of die cutting industry to combine automatic bender and automatic cutter into one set to make highly automated die plates manufacturing.

TSD-860 Packing information: Standard export sea-worthy wooden packing.

TOTAL TWO MIDDLE WOODEN CASES PACKING.TOTAL GW 600KGS. TOTAL CBM2.416M³

TSD-LC1000/1500-1218 High Power 1000W/1500W Laser Die Board Cutting Machine

Applications:

It’s widely used in printing, package, die making, advertising signs, metal plates, light-fixture, hardware, electric equipment, Automotive, electrical components…etc. industries.

Applicable materials:

Plywood, MDF board, acrylic, iron board, steel board, stainless steel board, aluminum board, copper board…etc. metal and non-metal materials

Machine Features:

-Gantry structure, stable working, small floor space required for machine.

- Laser cutting head coming with automatic touching system, adapt to the jagged materials and keep cutting kerf precision.

- Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.

- Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.

- Automatic gas control system to ensure low energy consumption operation power consumption and gas consumption.

- Software is easy to operate and simple, easy to understand

- Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the optical cavity to prevent external smoke and enter in.

- Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of the beam diameter and the constancy of the focus in the entire range of processing.

Picture:

TSD Die Board Plate Samples:

COMING EXHIBITION:

SINOFOLDINGCARTON 2017

Where are TSD machine users?

Users of flat die board laser cutting machine and auto bendert machines of the world:Singapore, Indonesia, Malaysia, Thailand, Philippine, Sri-Lanka, India, Vietnam, Bengal, Burma, Cambodia, South Africa, Algeria, Egypt, Lebanon, Sudan, Qatar, U.A.E., Saudi Arabia, Kuwait, Kosovo, Turkey, Uzbekistan, Ukraine, Morocco, Russia, Romania, Finland, Esthonia, Poland, Brazil, Mexcio,Chile, Columbia, Ecuador...etc over 60 countries.
