Aperçu /Produits/Machine automatique de cintreuse/Hotels Automatic Steel Rule Bender Graphic10 Steel Rule Bender Machine Steel Rule Cutting Die Bender

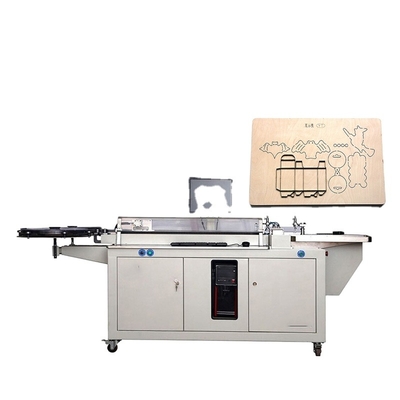

Hotels Automatic Steel Rule Bender Graphic10 Steel Rule Bender Machine Steel Rule Cutting Die Bender

1 Set
MOQ
$14,999.00(1 - 2 Sets) $12,999.00(3 - 4 Sets) $11,999.00(5 - 49 Sets) $9,999.00(>=50 Sets)
Prix
Hotels Automatic Steel Rule Bender Graphic10 Steel Rule Bender Machine Steel Rule Cutting Die Bender
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Place of Origin: Beijing, China
Condition: New
Machine Type: Steel Rule Bender
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2022
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Nom de marque: Graphic
Raw Material: Steel Bar
Material / Metal Processed: Carbon steel
Power: computer
Automation: Automatic
Extra Services: Slotting & Notching
Year: 2022
Weight (KG): 620
Key Selling Points: Self developed software
Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location: Brazil
Place of Origin:: Beijing, China
Condition:: New
Automation:: Automatic
Rule Thickness: 2pt-3pt
Extra Services:: Cutting,Lipping,Bridging,Nicking, Punching,Feeding,Broachin
Rules hight: 23.8-32mm
Precision after Bending: +/-0.03mm
The Min End Length of The Bending: 1.5MM
After Warranty Service:: Video technical support, Online support, Spare parts
Material Applied:: 0.71MM/1.07MM
Informations de base
Place of Origin: Beijing, China, Beijing, China
Nom de marque: Graphic
Conditions de paiement et expédition
Packaging Details: Auto Steel Rule Bender graphic10 Steel Rule Bender Machine Steel Rule Cutting Die Bender Packing: wrapping film and packed in pallet
Supply Ability: 50 Set/Sets per Month
Description de produit
Specification
item
value
Brand Name
Graphic
Material
steel
Model Number
VK10
Place of Origin
China
Industrial Use
die making
Raw Material:
Steel Rule
Power:
Auto matic
Extra Services:
Cutting Bending and Punching
Application:
Die Making Die Cutting Bending Machine
Type
Labor Cost Saving Bending Machine
The Planeness:
+/- 0.05mm
Precision after Bendi
+/-0.03mm
The Min End Length of The Bending:
of The Bending: 1.5MM
The Min Bulk Angle:
85 degree
Material Applied:
0.71MM/1.07MM
Details Images
Bending
Lipping
Punching
Bridging
Cutting
Samples
Part feature

Cutting Sets Bridging Punching Sets Feeding Sets

.Manual Lipping

Technical Parameters
Model
Blade thickness (mm)
0.71 /1.07
1.07(3pt)
1.42(4pt)
Blade height (mm)
23.8-32
23.8-60
23.8-60
Maximum bending angle
110
90
80
Minimum bending radius of 90 degrees (mm)
0.15
0.6
0.8
Minimum bending size of the front (mm)
1.5
1.5
2
Feeding Accuracy
0.03/300mm Panasonic Server Motor Combine with Precision ground ballscrew
 Bending Flatness
0.2/100mm Integrated more than 10 years of die making experience and Panasonic Server Motor with Japan imported Shimpoo reducer to
achieve high balancing flatness of dies
Bridge Punching Mode
Automatic continuous bridge, bridge height adjustable 15-18mm)Width (5-10mm) Gear Motor drive
 Cutting Mode
Automatic one cut and pouch cutting or swing（Automatic identification alarm and self Monitor） Gear Motor drive Full Power Seamless
joint
Lipping
Auto Motor Driven pouch Cut. Lipping Height adjustable By Rules
Nicking
2 different nick widths and auto selection by software Depth adjustable
Auto Functions
Auto Bending, Bridging, Cutting. Lipping、Broachingx Nicking
Side Broaching (Unique Feature)
-Reducing traditional work for manual side broaching on grinding machine -Combined "V" and "Flat" shapes broaching for joints
using tiny lipper -Joints with broaching suitable for cigarette packaging dies
Best Files Format
DXF、DWG、AL、CDR、PLT
Weight
620kg
Volume
2700 x1150 x1540mm
 Power
2kw 110V220V/50HZ 60HZ
Air Pressure
0.6 Mpa
Packing & Delivery
MOQ:
1 Set
Payment term:
T/T IN advance
Packing:
1 Set in a pallet
Delivery time:
20-40 days upon receipt of payment
MOQ：
1Set
Delivery Time:
7 days upon receipt of payment
Payment Terms:
T/T in Advance or Western Union
Packing :
1 Set one box
Weight:
About 8 kg
Q1: Are you factory direct?
A1:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in 2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other related products.
Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.

Q2:What’s your product ranges?
A2: Our main product is packaging material, main product are die cutting creasing matrix, paper cutting knives , paper drill bits, pneumatic waste stripper and so on.

Q3:Do you have a special price and service for wholesale?
A3: Beijing Graphic Inte’l Trade company is keeping search a long term business cooperation with our clients as a professional creasing matrix manufacturer.
we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product.

Q4: What payment methods can I use? And how secure is my payment?
A4: Beijing Graphic Inte’l Trade company accept your payment through Paypal, Bank Transfer,Western Union,etc.

Q5:How long does it take for my order to be shipped? And how long can I receive it?
A5:Generally, your order will be shipped within 3~7 working days after your payment received by us.
Beijing Graphic Inte’l Trade company devotes to be a fastest delivery led lights supplier.

Q6: How about the warranty?
A6: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-10-87227832
