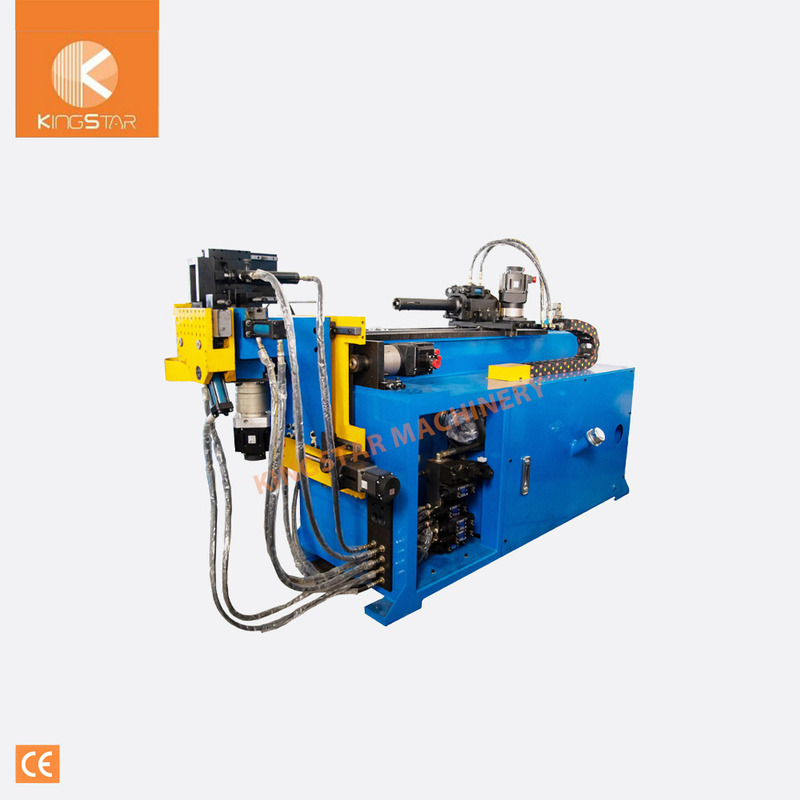

Round pipe bending CNC professional freeform adjustable pipe high precision bending machine

1 Set
MOQ
$5,100.00(1 - 1 Sets) $5,050.00(>=2 Sets)
Prix
Round pipe bending CNC professional freeform adjustable pipe high precision bending machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Material / Metal Processed: ALLOY, Brass / Copper, Carbon steel, Stainless Steel, Aluminum
Condition: New
Max. Bending Angle (Deg): 190
Bending Precision (Deg): ±0.1
Place of Origin: China
Automation: Automatic
Extra Services: End Forming
Power (kW): 5.5
Weight (KG): 800
Warranty: 1 Year
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Key Selling Points: Competitive Price
Showroom Location: Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Other, Gearbox
Keyword: bending machine
Color: Company Standard or Customized
Application: Round Pipe Bending
Type: Hydraulic Bending
Processing Material: Carbon Steel,Stainless Steel,Alloy...
Certificate: CE
Control system: PLC
Capacity: According to model
Machine weight: According to model
Product name: high precision cnc freeform adjustable pipe bending machine
Certification: ce
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Malaysia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan
Informations de base
Place of Origin: China
Certification: CE, ce
Conditions de paiement et expédition
Packaging Details: Professional high precision cnc freeform adjustable pipe bending machine Wooden case
Supply Ability: 1000 Set/Sets per Year Professional high precision cnc freeform adjustable pipe bending
Description de produit
Zhangjiagang Kingstar Machinery CO.,Ltd.
We have been committed to the development and production of various series of pipe processing machines, ranging from pipe bending machine, chamfering machine, cutting machine, end forming machine, saw blade sharpening machine, thread rolling machine and some other machines.
Final Products
CNC Pipe Bending Machine Product Sample
Product Description
DW-18CNC pipe bending machine.
1. Servo motor drives the bending arm to accelerate the movement speed, and obtain rapid acceleration and rapid deceleration, as well as large torque at the same time. Precision, heavy-duty linear rolling bearings are used in the press touch, press touch boost system and centerline radius adjustment system;
2. The trolley adopts directly driven rack and pinion and servo motor, which provides the system with high precision and high reliability;
3. Self-calibration pressure with automatic positioning can be set quickly;
DW-50CNC pipe bending machine.
4. Three-station platform: can process multiple curvatures, multiple diameters, mixed bends and rectangular polygons; 5. Semi-automatic or automatic feeding table; 6. The position-controlled pipe assist system can be applied to the application of small radius and complex elbows; 7. Power assisted mold replacement, making mold replacement simple and efficient.
Product Details
Machine details.
1.Electric control system:adopts famous controller in Japan,for example,the servo driver,servo motor,location mould group.CPU and so on from Mitsubishi Clubs or Yasukawa,which is high capability and excellent steadiness. 2.Extra large CPU of Mitsubishi can store 400 groups of file edition.When the storage space is madequate,transform software can be installed in the computer and then the files can be stored in hardware so as to expand edition groups indefinitely. 3.WINDOWS operating system is installed in the computer to match with Mitsubishi servo motor system.Therefore,apart from advantage of Mitsubishi servo driver,it owns the convenience of file management of WINDOWS operating system.It can also store the files in hardware or disk to indefinitely expand edition groups(optional). 4.Function of automatically detecting error and fault,which is displayed on the screen for operators to cancel the fault easily. 5.AII the process documents are inputted by touch control screen
Machine details.
6.Each bending tube can set compensation value,speed and gap between stripping according to the variety of different material.
7.Every bending of the tube can set separately compiles 5 move orders,10 speed matched for operators' use.It will improve working efficiency and decrease interfere points of tube pieces. 8. Touch control screen can transform between Chinese and English.Display of other language.
9.Material feeding way can be selected in straight or clip feed according to different needs.
10.XYZ coordinate can be automatically changed into YBC process value.
Machine details.
11.Documents are protected by key to prevent them from being amended by random.
12.Electric system is matched with heat exchanger for automatic cooling.You can also select numerical control airconditioner to maintain the use life of electric system.
13. It is equipped with automatic adding oil system to decrease friction between bending tubes,prolong use life of mandrel and guarantee the quality of bending tubes(optional).
14.The documents displayed on the screen can be printed by connecting a printer. 15.On the machine stage can be added with communications interface and date machine,it is connected to Kingstar Cooperation by telephoto lines for remote control of engineer to Real-time,monitoring,software updating,troubleshooting and so on(optional).
Machine details.
16.The position of material entrance,safely,input mould interfere and conduct module interfere of material feed trolley can be set by hand and automatically to cancel man measurement error and loss of machine collision. 17.Material feed axis will automatically detect itself before its operation to avoid the clash with machine. 18.Decomposition action can be collected at the time of actual bending so as to observe interfere points,amend movement and improve efficiency.
Product Paramenters
Model
1.DW18CNCX5A-2S
1.DW50CNCX5A-2S
2.DW18CNCX5A-3S
2.DW50CNCX5A-3S
Max bending capability diameter x thickness
Φ18mmx2mm
Φ50mmx3mm
Max bending radius (1)
R80mm
R250mm
Min bending radius (2)
According to the pipe diameter
Max bending degree
190°
190°
Max feeding length
1500mm
3000mm
Feeding method
Direct feeding
Working speed
Bending speed
Max 200°/s
Max 85°/s
Rotary speed
Max 200°/s
Max 200°/s
Feeding speed
Max 1000mm/s
Max 1000mm/s
Accuracy
Bending accuracy
±0.1°
±0.1°
Rotary accuracy
±0.1°
±0.1°
Feeding accuracy
±0.1mm
±0.1mm
Power of rotary servo motor
400w
750kw
Power of feeding servo motor
750w
1kw
Max bending groups
1. 16 units .
1. 16 units .
2. 33 units
2. 33 units
Oil Motor power
Pneumatic
5.5kw
Max Oil pressure
10Mpa
12Mpa
Machine weight
800kg
3500kg
Machine size
2760x690x1000mm
4900x1300x1700mm
Want to know more details about our machine, inquiry us now!
Recommend Products
CNC pipe bending machine
NC pipe bending machine
Double head pipe bending machine
Pipe cutting machine
Thread rolling machine
Pipe chamfering machine
Saw blade sharpening machine
End forming machine
Rolling machine
Why Choose Us
Zhangjiagang Kingstar Machinery CO.,Ltd.
Kingstar Machinery has been engaged in the production of pipe processing machinery for more than ten years, with strong technical force and strong development force. It has the annual production capacity of more than 1,000 machine tools such as pipe benders. The products have been exported to Europe, America, Middle East, Southeast Asia and other countries and regions for their performance, exquisite quality and perfect service, and are well received by customers.
Factory.
It is located in Suzhou Zhangjiagang City, along the Economic circle of Yangtse River Delta,enjoying the highly developed economic expansion and convenient transportation access.
Our team.
Our team is combined with R&D, manufacture, sales, service, and is committed to providing customers with one-stop service. The company attaches great importance to product quality and technical content. Since the establishment of the company, our R&D team has successively developed more than 60 new products and has a number of patented technologies. The company has passed ISO9001: 2000 quality system certification, CE certification and other certifications. In order to improve customer satisfaction, we also set a professional after-sales team.

Certificates.
FAQ
1. Are you a manufacturer or a trading company? We are a manufacturer with more than ten years of experience. 2. Do you provide any training to ensure that our users can operate the machine well? We will provide detailed video and instructions for the machine; 3. How long can you provide the warranty? Our machine has a one-year warranty, and we use all stable components with a long service life. 4. Where is your factory? How do i get there? Our factory is located in Zhangjiagang City, Suzhou (next to Shanghai). You can fly directly to Shanghai Hongqiao or Pudong Airport. 5. Do you guarantee the safe and reliable delivery of the product? Yes, we always use high-quality standard export packaging. 6. How about the shipping cost? The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
