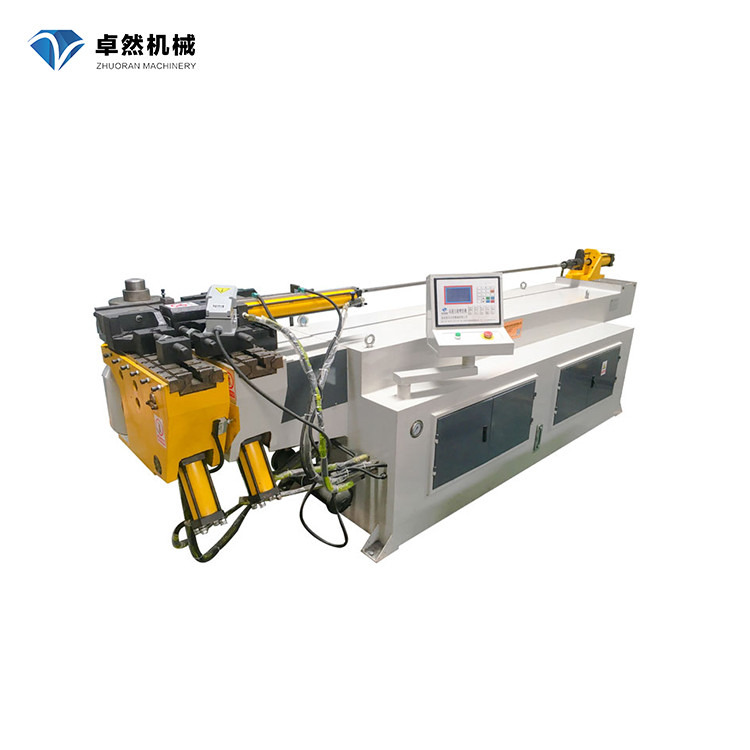

CNC Hydraulic Tube Bender Machinery Repair Shops Tube Bending Machine DW75NC

1.0 Sets
MOQ
CNC Hydraulic Tube Bender Machinery Repair Shops Tube Bending Machine DW75NC
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Place of Origin: Jiangsu, China
Nom de marque: ZHUORAN
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Bearing, Motor
Material / Metal Processed: Aluminum, Stainless Steel
Automation: Semi-automatic
Year: 2020
Weight (KG): 1900 KG
Motor Power (kW): 7.5 kW
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Machinery Repair Shops
Showroom Location: None
Product name: DW75C
Certification: ce
After-sales Service Provided: Online support, Video technical support
After Warranty Service: Video technical support, Online support
Local Service Location: None
Informations de base
Place of Origin: Jiangsu, China
Nom de marque: ZHUORAN
Certification: ce
Conditions de paiement et expédition
Packaging Details: Wooden case
Supply Ability: 20 Set/Sets per Month
Description de produit

1.High speed single head hydraulic pipe bender, controlled by microcomputer, multi-group program, multi-angle setting, easy to operate.

2.Chinese subtitle display, man-machine dialogue operation, optional manual, half cycle, full cycle operation mode.

3.High performance imported hydraulic valves and electrical

components.

4.Equipped with large capacity cooling system, effectively control the

working temperature.

5.The machine is characterized by convenient operation, stable performance, high working efficiency and high safety coefficient. It is an ideal

equipment for pipe fitting processing industry.

6.Can arbitrarily choose manual, semi-automatic operation mode, mobile foot switch both start, stop two functions.

Main specifications

The unit

DW75NC

Note:

1. The minimum bending radius is based on the pipe diameter

2. The maximum bending radius can be determined according to customer requirements
3. The maximum length of core penetration can be according to customer requirements

Maximum bending diameter ×Wall thickness.

mm

Φ75×6

Carbon steel

Maximum bending radius.

mm

R350

Minimum bending radius.

mm

R≥1.5D

Maximum bending Angle.

Degree

190

Standard core length.

mm

2800

Control system.

Microcomputer control

Number of elbow allowed for pipe fitting

Unit

16

Number of parts that can be stored.

Unit

16×16

Oil motor power.

KW

7.5

Maximum system pressure.

Mpa

12

Hydraulic system control.

Solenoid valve

Tank volume

L

250

Machine dimensions

mm

4300×900×1300

Machine weight

Kg

1900

The name

Manufacturers

Machine case

Produced

The Main electrical appliances

Taiwan also

Hydraulic valve

Taiwan's seven ocean

motor

Wuxi taihu lake

High pressure tubing

Produced

The oil pump

Zhejiang yongling

Oil cylinder

Produced

Travel switch

Changde

Switching power

Taiwan MingWei

Bearings

Harbin bearing

The mold

Produced
