Aperçu /Produits/machine à cintrer de tube de commande numérique par ordinateur/Building Material Stores Wholesale 30 Type High Power Hydraulic Stainless High Performance Cost Automatic Pipe Bender Steel Pipe Bender

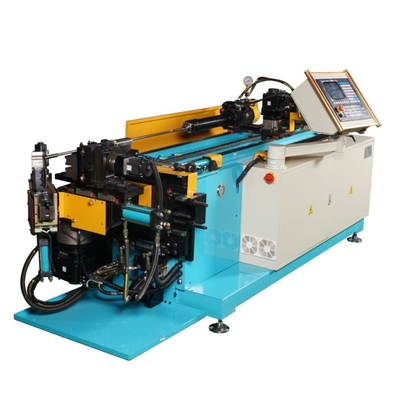

Building Material Stores Wholesale 30 Type High Power Hydraulic Stainless High Performance Cost Automatic Pipe Bender Steel Pipe Bender

1 Set
MOQ
$36,800.00(>=1 Sets)
Prix
Building Material Stores Wholesale 30 Type High Power Hydraulic Stainless High Performance Cost Automatic Pipe Bender Steel Pipe Bender
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Material / Metal Processed: Copper, aluminum tube etc
Condition: New
Machine Type: Pipe and tube bending machine
Max. Bending Angle (Deg): 195
Bending Precision (Deg): ±0.10
Place of Origin: Zhejiang, China
Nom de marque: Heliang
Automation: Automatic
Extra Services: Automatic loading& unloading devices
Power (kW): 7
Weight (KG): 1500
Warranty: 12months
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works , Other
Key Selling Points: Automatic
Showroom Location: China
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC, Engine
Product Dimensions: L2700xW850xH1350mm
Bending thickness: Max thickness 1.5mm
Feeding precision: ±0.07mm
Voltage: 220V/380V or customized
Color: Customizable or blue
Layer quantity of molds: 1~4 layers
Bending direction: Left / right / Left& right
Free mold: 1set
Core technology: Heliang control system
Bending capacity(OD): Max 31.8mm
Informations de base
Place of Origin: Zhejiang, China
Nom de marque: Heliang
Conditions de paiement et expédition
Packaging Details: Standard export wooden case
Supply Ability: 12 Set/Sets per Month
Description de produit
Product Description
Specification
Material / Metal Processed
Copper, aluminum tube etc
Model
HLTB HG30-4A-R2
Machine Type:
Pipe and tube bending machine
Max. Bending Angle (Deg):
195
Product Dimensions
L2700xW850xH1350mm
Bending capacity(OD)
Max 31.8mm
Bending thickness
Max thickness 1.5mm
Feeding precision
±0.07mm
Bending precision(Deg)
±0.10
Voltage
220V/380V or customized
Product weight:
1500kgs
Brand
Heliang
Color
Customizable or blue
Layer quantity of molds
1~4 layers
Warranty
12months
Extra function
Automatic loading& unloading devices
Bending direction
Left / right / Left& right
Free mold
1set
Place of Origin
Zhejiang China
Core technology
Heliang control system
Automatic
Yes
Starting method
Use hand or foot
Inspection before shipment
Provided
IOS9001
Yes
Manual
Provided
OEM/ODM
Acceptable
Core Components
PLC, Engine,Motor
Maximum elbow diameter (mm)
31.8
Power (kW)
7
Automatic
Yes
SALES AND SERVICE NETWORK
Company Profile
Heliang was founded in 2003, Old name is Hangzhou Jialiang, Then changed name into Zhejiang Heliang, it is parent company of Zhejiang Changxing Heliang. Zhejiang Changxing Heliang Intelligent Equipment Co., Ltd., with a registered capital of RMB 30 million. It is wholly owned by Zhejiang Heliang. Heliang is a high-tech enterprise integrating R&D, manufacturing, sales and service of intelligent equipment. Our R&D direction is to provide a completely set of solutions and intelligent equipments in the field of tube forming processing, as well as the development of intelligent application system software control technology such as CAM simulation, computer vision application, 3D imaging measurement and detection, and electronic signage. We mainly provides technical solutions, process methods, quality management, production line layout, production line equipment, personnel training and after-sales service. Until now, the company has CNC cutting machine, CNC bending machine, Spinning machine, CNC end forming machine, CNC flute type punching machine, Long U bending machine, Tube-expanding machine, Fin forming machine, Robot automatic assembly production line, Non-standard customized production line, and other products.
Long history and experienced 19years experience in tube processing equipment R&D, production and sales, provide professional tube processing solution for more than 500 clients worldwide.
Very strong R&D team In terms of R&D and technological innovation, the company has authorized 8 invention patents, 27 utility model patents, and 10 software copyrights. The patent application and authorization have maintained a compound growth rate of more than 30% per year, and won several awards. Quality control QC inspection exist in every part of production, since raw material to shipment. And Every machine will be debugging and running for 72hours before shipment. After-sale service Exploration and innovation, quick response and action, 12month warranty and responsibility for maintenance in lifetime. Quick service to support clients. Company Mission A century-old enterprise with brilliant persons, predomination technology, excellent quality and outstanding management. Company Vision Guide green and intelligent future, introduce more information technology to industrial intelligence, and enhance the harmony between people and the environment.
Certificate
Exhibition
Packing & Delivery
FAQ
1. What kind of pipe materials can processing?
Carbon steel, stainless steel, Aluminum, Copper pipes, tubes, profile
Boil bank tubes processing
Condenser tubes processing
Wheelbarrow pipe processing
Exhaust pipe processing
Automobile pipe processing

2. What delivery time for standard machine?
Within 35 working days after received advanced payment.

3. Do you provide training to operation the machine??
1). Will provide operatiing video and manual book with our pipe bending machine.
2). Welcome your operators to our factory, we'll arrange everything at our factory.

4. What about your machine main component?
1). PLC: Japan Mitsubishi
2). Servo motor: Japan Mitsubishi
3). Hydraulic system: Japan Yuken
4). Decelerate motors: VGM/CBT

5. Any optional functions for all your machines?
Full auto loading and unloading device, machines able to be multifunction like cutting+chamfering+end forming+bending+press plate
etc, according to your request.
6. What about your machine warranty?
One year warranty after machine reached customer's workshop.
And will responsible for lifetime maintenance
7. What certificate for Mandrel pipe bending machine?
We have ISO certificate for our factory and CE Certification for our machine.
8. What kind of package do you offer?
Export standard wooden case
