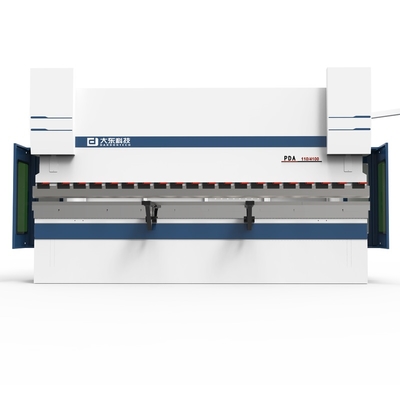

metal process cnc bending machine hydraulic for factory low price press brake machine

1 set
MOQ
$30,000.00(1 - 3 sets) $25,000.00(>=4 sets)
Prix
metal process cnc bending machine hydraulic for factory low price press brake machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Slider Stroke (mm): 400 mm
Automatic Level: Fully Automatic
Throat Depth (mm): 400 mm
Machine Type: Synchronized
Length of Working Table (mm): 2500
Width of Working Table (mm): 100 mm
Dimension: 3700X1665x2625
Condition: New
Place of Origin: Guangdong, China
Nom de marque: dardontech
Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum, mild steel
Automation: Automatic
Extra Services: End Forming
Year: 2022
Weight (KG): 7500
Motor Power (kw): 7.5 kw
Key Selling Points: High-accuracy
Warranty: 1 Year
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Farms, sheet bending
Showroom Location: Egypt, Italy, France, Saudi Arabia, Indonesia, Pakistan, Russia, UAE
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1.5 years
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Other
Controller: delem 53t
style: hydraulic
Usage: Metal Sheet Folding
Informations de base
Place of Origin: Guangdong, China
Nom de marque: dardontech
Conditions de paiement et expédition
Packaging Details: wooden box, plastic film wrapping
Supply Ability: 10 Set/Sets per Quarter
Description de produit
Product Description
Holistic Welding Structure
Double Crowning Mechanism
Offer Higher Performance Solution For Customer
Electro-hydraulic Servo System, Closed-loop Slider Synchronization Control
Standard With CNC 4+1 Axes:
Y1(left Up-down Cylinder) Y2(right Up- Down Cylinder)
X(front-back Axis Of Back Gauge)
R(up-down Of The Back Gauge)
V(mechanical Crowning)
Machine Details
Controller: DELEM 53T
* "Hot-key” touch navigation
* 10.1" high resolution color TFT
* Up to 4 axes (Y1,Y2 + 2 aux. axes)
* Crowning control
* Tool / material / product library
* Servo and frequency inverter control
* Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
* TandemLink (option)
* USB memory stick interfacing

Profile-T offline software
A steel plate integral welded structure
* The internal stress is eliminated through the overall tempering/surface shot peening process of the fuselage to ensure the
lasting stability of the overall accuracy of the machine tool.
* The frame processing is completed by the Spanish pentahedron machining center at one time to ensure the levelness and
verticality of each installation surface. So as to achieve excellent straightness and angular consistency of the workpiece.
Slider Strengthening and Accuracy Holding
DARDONTECH design increases the horizontal strength obviously and makes it possible to apply micro adjustment to the slider in X
direction (X+ by pulling, X- by pushing) after many years operation.
Side Assembled
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Fagor Linear Encoder
.laser protector
Mechanical crowing
Configuration
Item
Standard Brand & Model
Option Brand & Recommended Model
CNC System
DELEM DA-53T
DELEM OTHER SERIES, CYBELEC ; ESA
Hydraulic Compact
ESTUN
ESA; HPM
Servo Motor
ESTUN
ESA
Hydraulic Valves
REXROTH
VOITH
Linear Encoder
FARGO/GIVI
Crowing System
DARDONTECH
WILA; WILSON
Ball Screws/Guide Linear
HIWIN
Foot Switch
KACON
Coupling
MIKI PULLEY
Oil Junction
UNIFIT
BLAGO
Sealing Component
PARKER/HALLIT
Electric Component
SCHNEIDER
Specification
Model
Unit
PDA-170/3200
Nominal Force
KN
1700
Bending Width
mm
3230
Column Distance
mm
2700
Open Height
mm
525
Throat Depth
mm
400
Cylinder Stroke
mm
250
Main Motor Power
KW
15
Oil Volume
L
345
Moving Speed
Approaching
mm/s
220
Working
mm/s
11
Returning
mm/s
145
LxWxH
Length
mm
3720
Width
mm
1740
Height
mm
2675
Weight
KG
9112
Packing & Delivery
Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time. All the spare parts of the machine were covered by some soft materials,mainly using pearl wool. Avoiding all damages that could happen in the delivery process. Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. The outmost is wooden case with fixed formwork. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Company Profile
Qingdao Dardontech was established in March 2013, in August 2018,our company invested 260 million RMB to build a high-level industrial park opposite the Yinzhu Expressway export. We are engaged in CNC turret punch machine, fiber laser cutting machine, hydraulic press brake, feeding machine and the FMS . The company has an independent technology R & D department, which boosts the development of the industry through technological innovation, continuously improves product quality through user feedback, and reflects enterprise value by meeting user needs. Our company has a sound sales and after-sales service system, the products are sold nationwide and have been exported to Southeast Asia, South Asia,Central Asia,Africa, Middle east, Russia, and other countries and regions.
Customer Photos
FAQ
1. who are we?
We are based in Shandong, China, start from 2013,sell to Domestic Market(86.00%),Eastern Europe(3.00%),Mid East(2.00%),South
Asia(2.00%),North America(00.00%),South America(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Western Europe(00.00%),Central
America(00.00%),Southern Europe(00.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CNC Turret Punch Press,CNC Press Brake,Fiber Laser Cutting Machine,Bending Automation,Flexible Manufacturing System,Panel Bender

4. why should you buy from us not from other suppliers?
Specialised in CNC Punching Machine, turret type. Servicing 1300+ customers and 1800+ machine globally. 50000 squaremeter leading
manufacturing unit located at Qingdao. Constant-Temperature Workshops with top accurate machines such as Mazak DMG.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese,Russian
