Aperçu /Produits/machine à cintrer de tube de commande numérique par ordinateur/DW-114NC Machinery Repair Shops Semi Automatic Double Stack Bender Stainless Steel Rod Pipe Tube Bending Machine

DW-114NC Machinery Repair Shops Semi Automatic Double Stack Bender Stainless Steel Rod Pipe Tube Bending Machine

1 set
MOQ
DW-114NC Machinery Repair Shops Semi Automatic Double Stack Bender Stainless Steel Rod Pipe Tube Bending Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Material / Metal Processed: ALLOY, Brass / Copper, Carbon steel, Stainless Steel, Aluminum
Condition: New
Max. Bending Angle (Deg): 185
Bending Precision (Deg): 0.1
Place of Origin: Jiangsu, China
Nom de marque: NUO EN
Automation: Automatic
Extra Services: pipe processing
Year: 2020
Power (kW): 22
Weight (KG): 7000
Warranty: 1 Year, 12 Months
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Construction works
Key Selling Points: High Productivity
Showroom Location: South Korea, Viet Nam
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, PLC
Machine Type: Pipe and Tube Bending Machine
After-sales Service Provided: Overseas third-party support available, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
DW-114NC PIPE BENDER: Excellent
Voltage: 380V/220V
Usage: Pipe Tube Bender
Type: NC Bending Tools
Material: Solid Steel
Weight: 7000 KGS
Power: NC
After Warranty Service: Video technical support, Online support
Local Service Location: South Korea, Viet Nam
Informations de base
Place of Origin: Jiangsu, China
Nom de marque: NUO EN
Conditions de paiement et expédition
Packaging Details: The machine will be packed in wooden case or iron box with pallet, we also provide the service of packaging according to customers' request.
Description de produit
Product Description

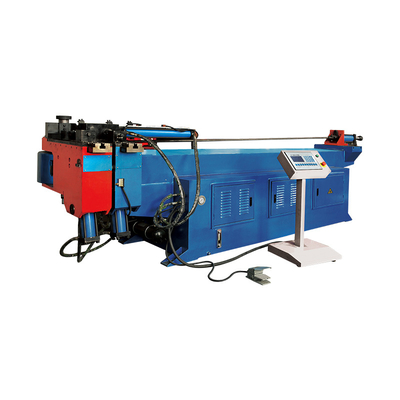

DW114NC Hydraulic automatic pipe bending machine

A. Introduction

The machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fitting processing industry.

1. The machine is controlled by NC, hydraulically driven, and prefabricated with a variety of different bending angles.

2, Chinese-English subtitle display, man-machine dialogue operation, you can choose manual, semi-automatic operation mode, mobile foot switch has both start and stop functions.

3, Using of high-performance imported hydraulic valve components ( Yuken from Japan).

4, Equipped with a cooling system to effectively control the working temperature.

5. The machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fittings processing industry

B. The main technical parameters:

Main Specifications

Unit

Model: DW-114NC

Remarks

Maximum Bending Pipe Diameter * Wall Thickness

mm

Φ114*10
  1. The minimum bending radius depends on the pipe diameter
  2. The maximum bending radius depends on the customer requirements
  3. The maximum core-through length may depend on the customer requirements

Maximum Bending Radius

mm

R520

Minimum Bending Radius

mm

R90

Maximum Bending Angle

Degree

190

Standard Core-through Length

mm

4500

Control System

Microcomputer Control

Allowable Pipe Fitting Elbow Number

Unit

16

Storable Component Number

Unit

16*16

Oil Hydraulic Motor Power

KW

22

Maximum System Pressure

Mpa

14

Oil Hydraulic System Control

Solenoid Valve

Oil Tank Capacity

L

350

Machine Outline Dimensions

mm

5700*1300*1600

Machine Weight

Kg

7000

C.Application:

1. Exhaust pipe of car, motorcycle, airplane and other machinery.
2. Tubes of air conditioning, furnitures, bikes, outside street light, sports facilities
3. Pipes of kitchen and bathing facilities, pipes of medical equipments.
4. Metal sheets of interior finishing, constructing facilities, outside protective equipments.

Our Services

Company Details
Professional: More than 15 years in metal pipe proccessing machines fabrication.
Brand: NUOEN, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc

Trade information:
FOB Ningbo, FOB Shanghai, CIF your port
Payment Terms: T/T, L/C, Western Union, MoneyGram
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
If you have any interest or questions about the above machine, please feel free to contact with us: +86-18017581805
