Die Making Ruler Bending Machine Automatic Die Bender Bending Machine For Machine Cutting Steel

1.0 Sets
MOQ
Die Making Ruler Bending Machine Automatic Die Bender Bending Machine For Machine Cutting Steel
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Place of Origin: Jiangsu, China
Condition: New
Machine Type: Steel Cutting Rule Bending Machine
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor
Nom de marque: GRANDCORP
Raw Material: Steel Rule
Material / Metal Processed: Stainless Steel
Power: Auto matic
Automation: Automatic
Extra Services: Cutting Bending and Punching
Weight (KG): 620
Key Selling Points: High Productivity
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
Showroom Location: None
Product name: automatic die bender bending machine for die cutting machine steel
Type: Labor Cost Saving Bending Machine
Application: Die Making Die Cutting Bending Machine
Precision after Bending: +/-0.03mm
The Planeness: +/- 0.05mm
The Min End Length of The Bending: 1.5MM
The Min Bulk Angle: 85 degree
Material Applied: 0.45MM/0.53MM/0.71MM/1.05MM
The Height of The Blade: 8-30mm
Power Supply: 380v/50HZ
Certification: ce
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
After Warranty Service: No service
Local Service Location: None
Informations de base
Place of Origin: Jiangsu, China
Nom de marque: GRANDCORP
Certification: ce
Conditions de paiement et expédition
Packaging Details: plywood carton box packing
Supply Ability: 100 Set/Sets per Week
Description de produit

rule automatic die bender bending machine for die cutting machine steel

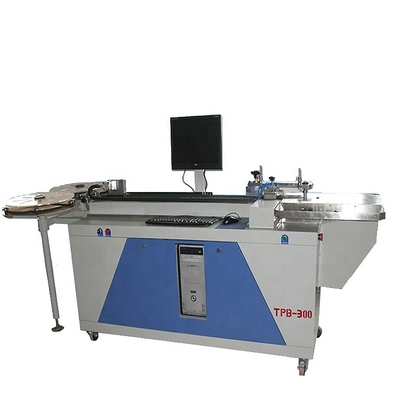

The TPB300 Auto Bender is a very good machete equipment. It is stable, fast and accurate. To be completed by a variety of complex graphics bending action. The key is, the accuracy of its size, a wide adaptability of bending, and for the curved shape of the flexible set, die mounting location for the correction function is convenient, leading the other a machete equipment in the industry.

A. Product features:

1. Promptly&precisely perform bending,notching,rake lipping,clearance lipping,front plane cutting and back plane cutting.

2. Direct calibration after bending,no need for additional edge truncation or grinding.

3. Fully automated bending to its true meaning,time and labor cost saving.

4. Perform the six function individually,simutanousal,or several of them.

5. CE Certified.

6. Export to worldwide.

B. Specifications:

Technical Parameters Blade thickness(mm)
0.45 0.53 0.71(2PT) 1.07(3PT) 1.42(4PT)
Blade height(mm) 8-25 8-25 8-30 8-40 8-60
Maximum bending angle 100 100 100 100 100
Minimum bending radius of 90 degrees(mm) 0.4 0.4 0.5 0.5 0.5
Minimum bending size of the front(mm) 1 1 1.5 1.5 1.5
Minimum bending size of the Rear(mm) >0 >0 >0 >0 >0
Feeding Accuracy 0.03/300mm Panasonic Server Motor And High Precision Screw guide
Bending Flatness 0.2/100mm
Bridge Mode Automatic continuous bridge, bridge height adjustable(15--18mm) Gear Motor drive
Cutting Mode Automatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full Power add olecranon pneumatic machine
Line Cut Efficiently Bending the Blade and Cutting the Line At the Same time.
Best Files format DXF,DWG,AI,CDR,PLT
Weight 620kg
Volume 2660*1150*1540
Power 1.8kw 110V 220V / 50HZ 60HZ

C. Supported Graphics Formats:

1.Graphics system support [*.dxf] format.

2. Format is saved using the system[*.jcx].

Machine Tools

E. Product Detailed Images:

Cutting Sample

F. Bended Samples for Reference:

G. Our Services:

1. QC System:100% inspection before shipment.

2. Drawing format: CAD / PDF/ DWG/ IGS/ STEP

3. Packaging: Standard package / Pallet or container / As per customized specifications

4. Payment Terms: 30 -50%T/T in advance,

70-50% balance before delivery; L/C, PayPal or Western Union is acceptable.

H. Shipment Terms:

DHL, UPS, EMS, TNT, Fedex, sea transportation are available

I. Trade terms:

EXW, FOB, CIF preferred

Related Products
Company Information
FAQ

1. What over sea service can you provide?

We can provide on line service and our engineer can also come to your place.

2. What kind of package will this machine be?

Strong exported wooden box.

3. Is the auto bending machine equipped with computer?

Yes,each machine will equipped with a computer before shipping.

4. What is the max rule height your machine can bend?

The max rule height can be bend is 50mm.

5. How will be the machine installed?Should we install by ourselves?

The auto bending machine installation is easy, customer can install by themselves and we provide on line help.

We can also send our engineer to your place for installation.
