Aperçu /Produits/Cintreuse de mandrin de commande numérique par ordinateur/Pipes Processing DW63 CNC-3A Pipe Bending Machine Square Pipe Bender CNC Bar Bender Machine CNC Tube Bender Pipe Bender -1S

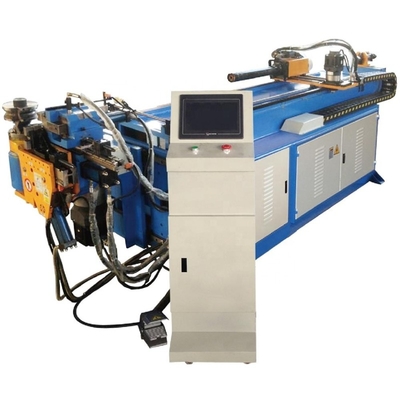

Pipes Processing DW63 CNC-3A Pipe Bending Machine Square Pipe Bender CNC Bar Bender Machine CNC Tube Bender Pipe Bender -1S

1 Set
MOQ
$21,000.00(1 - 3 Sets) $20,000.00(4 - 999999998 Sets) $2,000.00(>=999999999 Sets)
Prix
Pipes Processing DW63 CNC-3A Pipe Bending Machine Square Pipe Bender CNC Bar Bender Machine CNC Tube Bender Pipe Bender -1S
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Material / Metal Processed: ALLOY, Brass / Copper, Carbon steel, Stainless Steel, Aluminum
Condition: New
Bending Radius (mm): 25 - 250
Max. Bending Angle (Deg): 190
Bending Precision (Deg): 0.1
Place of Origin: Jiangsu, China
Nom de marque: Taikang
Automation: Automatic
Year: 2020
Power (kW): 7.5
Weight (KG): 3000
Warranty: 1 Year
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Construction works , Energy & Mining
Key Selling Points: High Productivity
Showroom Location: None
Marketing Type: Hot Product 2019
Machinery Test Report: Not Available
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, PLC
Certification: ISO 9001:2000
After-sales Service Provided: Free spare parts, Online support, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: None
Weight: 3000Kg
Power: CNC Servo Motor
Control: PLC
PLC: Japan Mitsubishi
Application: Pipes Processing
Function: Push Bending
Applied shape: Oval Tube Pipe Bending
Operation: Touch Screem
Capacity: Round Pipe Square Pipe
Voltage: 3-380V 50Hz
Informations de base
Place of Origin: Jiangsu, China
Nom de marque: Taikang
Certification: ISO 9001:2000
Conditions de paiement et expédition
Packaging Details: --LCL Loading Packaging: Steel pallet and plywood case. --FCL Loading Packaging: Pallet with plastic film. --Shipping: by sea
Supply Ability: 50 Set/Sets per Month
Description de produit
Product Description

Product Application

Full-Automatic 3D DW63 CNC-3A-1S CNC Pipe Bending Machine Bar Bending Machine Square pipe Bending Machine tube bender pipe bender is full automatic type for bending three dimensional complicated workpiece, which can input YBC or XYZ data into CNC control system, and machine make the tube bend accordingly. Bending , rotation and feeding by servomotor. Maximum 330 sets of program can be stored and maximum 12 bends for each program. 3D complicated workpiece can be finished once. DW63 CNC-3A-1S  Pipe Bending Machine was widely used in mass production of standardized products, such as  Automobile spare parts (brake line, bumper bar, silencer and etc.), bike and motocycle, fitness equipment, sanitary equipment, vent-pipe, petroleum/water pipeline,  shipbuilding, chemical Industries and etc.

Specifications
DW63CNC-3A-1S
Remark
Maximum bending diameter × wall thickness
Φ63mm × 4mm
1. Minimum bending radius according to pipe diameter



2. Maximum bending radius according to customer requirement



3. Maximum mandrel length according to customer requirement
Maximum bending radius
R250mm
Minimum bending radius
R25mm
Maximum bending angle
190 °
Maximum feed length
2600mm
Feeding
Direct/Clamp feeding
Working paremeter
Bending speed
Max 85 ° /s
Rotary speed
Max 200 ° /s
Feeding rate
Max 1000mm /s
working precision
Bending precision
± 0.1 °
Rotary precision
± 0.1 °
Feeding accuracy
± 0.1mm
Information input
1. coordinates (X. Y. Z)
2. work value   (Y. B .C)
Bending mode
1. servo bending: 1kw
 (3 axis above )
2. hydraulic bending
Rotary servo motor power
1Kw
Feeding servo motor power
1.3Kw
Elbow max. number
1. 12
2. 33
Parts numbers storage
1. 330
2. 125
Hydraulic motor power
7.5kw
System max. pressure
12 Mpa
Diamension
4900 x 1300 x 1300mm
Weight
3000Kg




3D DW63 CNC-3A-1S CNC Pipe Bending Machine Bar Bending Machine Square pipe Bending Machine tube bender pipe bender

Main Features

3D DW63 CNC-3A-1S CNC Pipe Bending Machine Bar Bending Machine Square pipe Bending Machine tube bender pipe bender

1) Interactive PLC touch screen offers easy access to auto and manual operating modes.

2) System diagnostics and multiple language capability. Automatical selfcheck errors and faults function, alarm indication for troubleshoot.
3) Standard clockwise bending direction.
4) Fully hydraulic clamping on clamp die and pressure die.
5) Drop-way hydraulic clamping.
6) Direct acting hydraulic pressure die with adjustable flow valve.
7) Maximum 100 sets of program storage,Maximum 32 bends for each program.
8) Independent programmable speeds for Y, B, and C axes.
9) Programmable bending material springback settings for each bend angle.
10)Automatic release of pipe prior to final bend.
11)Bending Axis-Driven by hydraulic cylinder. Feeding Axis-Driven by Servo Motor. Rotating Axis-Driven by Servo Motor.
12)Suitable for steel, stainless steel, aluminum, titanium, copper and bronze.
13)Foot Pedal Cycle start.
14) Air Cooling System.
15)Power: As required (3 phase 220V or 380V or 415V, 440V and etc..)
16) Centralized automatic lubrication

Standard accessories.

1) One pair of standard mould (wheel mould, clamping mould and sliding plate mould)
2) One set of common tools

Special accessories for option.

Auxiliary pushing device, core rod, wrinkle-proof mould, shaped mould, forming mould
Tailor made mould for shape like square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle bar, I-steel and flat steel, etc.

Detailed Images

Machine Parts

Name: Servo bending motor

Brand:  Mitsubishi

Original: Japan

Worldwide famous brand, high reliability, high torque, fast and accuracy

Electrical Parts

Name:PLC/electric relay
Brand: : Japan Mitsubishi/ Schneider
Original: Japan/Germany
Worldwide famous brand, high reliability

Machine Parts

Name:Servo motor
Brand: : Japan Mitsubishi
Original: Japan
Worldwide famous brand, high reliability,  fast and   accuracy


Electrical Parts.

Name:Sensor/anti-pinch limit switch

Brand:  FoTEK/ Tmazta

Original: Taiwan China

Worldwide famous brand, high reliability, more safety

Samples
Our Service

Pre-Sales Service

* Inquiry and consulting support.

*Provide technical suggestion and package solution

* Sample testing support.

*Reply within 24 hours

*Provide progress information

* View our Factory.


After-Sales Service

* Test the machine before shipment

* Provide technical training relate to use the machine.

* Engineers available to service machinery overseas.

* Free spare parts within one-year warranty period
* Reasonable price for spare parts after warranty
* Provide long-term technical assistance.


Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use PE film for packing or pack it according to customers special request.
Our Company

About our company.

Suzhou TaiKang Machinery Co.,Ltd. Founded 2015.One of top manufacturer in China.Specializing in design and manufacturermachines for pipe process equipment and
tailor made solutions for the global supplier.
Our business philosophy is Client First,Quality First and Honesty First. We sincerely welcome worldwide potential buyers and overseas distributors to contact and visit us for cooperation.

FAQ

What kind of pipe materials can bend ?
Carbon Steel ,Stainless steel ,Aluminum ,Copper pipes, tubes.
How to choose pipe/tube bending machine

According following information to choose  type:
1)Pipe/tube materials
2)Max. outside diameter of the pipe/tube
3)Wall thickness range of the pipe/tube
4)Max bending radius  (general 1.5*OD)
5)Bending drawing or samples
Do you provide training to operating pipe bending machine?
1)Will provide operating video and manual with machine.
2)Also welcome to our factory for training, we will arrange everything at our factory.
Any optional functions for pipe bending machine

1)Servo motor for axis: 2axis(standard for CNC type),3axis,4axis,5axis,6axis..
2)Control System: PLC(strandard) or IPC
3)Bending mould layer: single layer(standard) ,double layers,triple layers and more.
What about your machine main component
1) PLC: Japan Mitsubishi
2) Servo motor: Japan Mitsubishi
3)Hydraulic system: Taiwan 7 Ocean
4)Main Motor: Siemens
5)Electric parts: Schneider
What about your machine warranty?
One year warranty after machine reached customer's workshop.
And use famous brand components for long working lifespan.
What certificate for pipe bending machine
We have ISO certificate for our factory and CE Certification for our machine.
What delivery time for pipe bend machine

30 working days after received advanced payment.
Payment term for pipe bending machine

Alibaba.com Trade Assurance accepted. T/T and LC accepted.

Contact Us.

Mobile: +86-19805191686 (Mr.Yu)
Email: yuhongwei2001 at live.com
WeChat: +86-19805191686
Phone: +86-0512-58999774
We are online 24/7, please contact us freely!

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate
