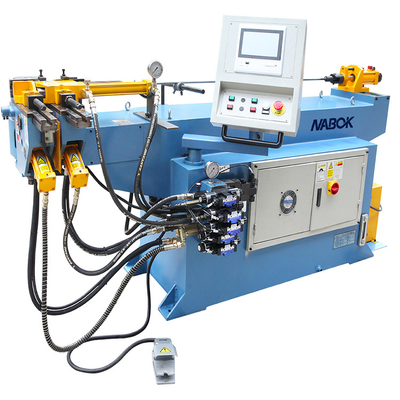

Building Material Shops New Type Electric Steel Tube Hot Price Bending Machine

1 set
MOQ
Building Material Shops New Type Electric Steel Tube Hot Price Bending Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Place of Origin: Jiangsu, China
Machine Type: Cold Forging Machine
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Motor
Warranty: 1 Year
Key Selling Points: Easy to Operate
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location: None
After-sales Service Provided: Online support, Video technical support
After Warranty Service: Video technical support, Online support
Local Service Location: None
Informations de base
Place of Origin: Jiangsu, China
Conditions de paiement et expédition
Packaging Details: Wooden case
Supply Ability: 5 Set/Sets per Month
Description de produit
Product Description
MODEL
CR-38S
CR-38SQ
NC-38TSQ
NC-50TSQ
Max. bending capability
(O.D x W.T.)
Mild Steel
ø38.1 x 1.6
ø38.1 x 1.6
ø38.1 x 1.6
ø50.8 x 2.0
Stainless Steel
ø31.75 x 1.5
ø31.75 x 1.5
ø31.75 x 1.5
ø44.45 x 1.5
rectangle & square tube
--
30 x 2.0
30 x 2.0
40 x2.0
Max. bending radius
350
350
350
400
Max. bending angle
210°
210°
210°
210°
Speed / Sec.
3 S
3 S
4 S
7S
Bending accuracy
±0.1
±0.1
±0.1
±0.1
Effective length of mandrel
--
1500
1500
2000
Total power
5HP
5HP
5HP
10HP
Machine dimensions
LxWxH
1.65*0.74*1
1.2*0.74*1.2
2.3*0.9*1.4
3.2*0.84*1
Weight (kg)
900
900
950
950
Features of NC Tube Bending Machine
1. Figure-touched interface of NC Tube Bender.
* Pipe Bender with figure-touched interface – simply touch the corresponding figures & words to proceed the operation .
* The panel displays the movement situation of the machine and bending angle.

2.Mechanical Composition of NC Tube Bender
* Pressure die booster is controlled by individual hydraulic cylinder that enhances the processing stabilization .
* The quick tooling change system is favor of production.
* High-rigid mechanism enhances the life-time & reliability of machine.

3. Modularized design on NC Tube Bender
* Modularized design on circuit in the NC Pipe Bender, easy maintenance and replacement
* Auto detective and error movement indicating functions prevent machine from being damaged by wrong operation.

4.Multi-protection
* Mobile pedal switch and side emergency stop switch keep users from dangers
* Code protection function guards the program and process data.
* Overload protection of main motor, monitoring of mechanical, anti-unreasonable operation

5.The characters of Controller in NC Tube Bender
* Operation Mode：manual, semi-automatic, fully-automatic, program input and modification.
* Control-axis：Bending axis C
* Max. Bends / per program : 16 Bends.
* Max. Memorized Programs : 200 sets.
* Action setting：workload counter, mandrel on/ mandrel off option, Pressure die booster function, slow mandrel-backward function
/ special equipme.
Company Profile
One Vendor, One Solution Acree Intl Group has grown into one of the excellent metal and non-ferrous material cutting and bending machinery supplier in China. We provide one-stop service conform to your exact product specifications globally. Our central location in Hongkong and our import&export company's office and factories in Suzhou, Jiangsu, allows us to efficiently monitor our manufacturing schedule to meet our customers' timeline and budget needs. Acree Tube's inventory includes carbon steel, alloy steel, stainless steel and nickel alloy, titanium, as well as copper alloy. Our OD range is 1/8 inch through 60 inch with wall thickness up to 3 inch.We mostly specialize in seamless/welded cold dawn tubes for hydraulic cylinder (honed tube), mechanical application and heat exchanger and boiler field which including finned tube as well as U bent tube. In addition, we supply oilfield tubular goods, in both seamless and welded. Our materials also include various types of the floating tube sheet, baffle plate, metal sheet, wire, bar etc. On Time, On Budget, For Over 10 Years Our reputation is for providing competitive prices, technical services and on-time deliveries for every project for over 10 years. We have experienced employees to respond quickly to all your requests. If a specific product is not in stock when you request it, we guarantee the shortest lead time available because we have subordinate factories to produce what exact products base on your urgent demand. All of our products can meet or exceed ASTM and ASME, DIN,EN and JIS standards per your specific requirements and include full documentation.
Production Process
Certifications
sample room
Exhibition
Packing & Delivery
FAQ
1. Could I have prices of your products? Welcome. Please feel free to send us an email here. You will get our reply in 24 hours 2. Do you inspect the finished products? Yes, each step of production and finished products will be came out inspection by QC department before shipping.
