Steelmaking Sale Stainless Steel CNC Square Tubing Pipe Bend Machine/Electric Hydraulic Round Rectangle Tube Bender For Bend Pipes

1.0 Sets
MOQ
Steelmaking Sale Stainless Steel CNC Square Tubing Pipe Bend Machine/Electric Hydraulic Round Rectangle Tube Bender For Bend Pipes
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Material / Metal Processed: Brass / Copper, Stainless Steel, Carbon steel, ALLOY, Aluminum, Mild Steel
Condition: New
Machine Type: Square Tube Round Pipe Bender
Bending Radius (mm): 30 - 350
Max. Bending Angle (Deg): 190
Bending Precision (Deg): +/- 0.1mm
Place of Origin: Jiangsu, China
Nom de marque: SZ-SLS
Automation: Automatic
Extra Services: Square Tube
Year: New
Power (kW): 11
Weight (KG): 2000
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Pipe Bending Industry, Bending Tube Plant
Key Selling Points: Competitive Price
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC
Name: Square Tube Round Pipe Bender
Function: Profile Frame Bending
Application: Stainless Steel,Carbon Steel,Copper,Brass,Aluminum...
Applicable Shape: Round,Square,Rectangle,Oval,Profile...
Technical: Cold Bending
Control: PLC and Touch Screen
Drive Mode: Electric + Servo/Hydraulic
Cooling System: Water or Fan Cooling
Suit Bending: 3D Accurate Bending
Voltage: Customized or Standard
Informations de base
Place of Origin: Jiangsu, China
Nom de marque: SZ-SLS
Conditions de paiement et expédition
Packaging Details: Poly Wood Packing
Supply Ability: 500 Set/Sets per Year
Description de produit
Making Sale CNC Square Tubing Pipe Bending Machine / Electric Hydraulic Round Rectangle Tube Bender for Bend Pipes

The Machine Video Introduction
For More Exciting Videos, Please Visit Our Website: www.slsmachinery.com

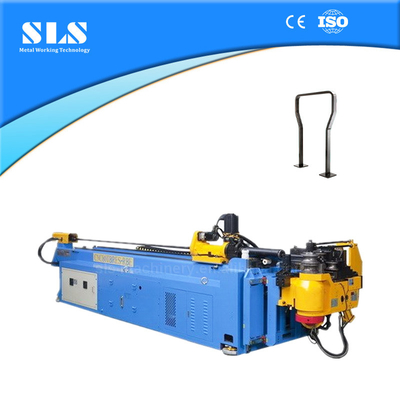

Brief Introduction on Square Tube Round Pipe Bender

SZ-SLS Machinery Manufacturing and Sales CNC Pipe Bender Machine
with PLC or IPC which manage Bending (Y), Feeding (X) & Rotation (Z) in a complete automatic cycle.
Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
We only use popular quality components in the production of our benders from such companies as JAPAN MIYSUBISHI,TAIWAN
WEINVIEW,JAPAN YUKEN,JAPAN NEIMICOM,SKF AND ETC...
This value priced CNC Tube Bending Machine is an excellent choice for general purpose and any type of conventional tube bending applications.

Features on Square Tube Round Pipe Bender

 * Interactive PLC touch screen offers easy access to auto and manual operating modes.
* System diagnostics and multiple language capability.
* Fully hydraulic clamping on clamp die and pressure die.
* Bending Axis-Driven by Cylinder or Servo Motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-
Driven by Servo Motor.
* Equipped with adjustable speed valve on pressure die ensures the synchronization of bending.
* Air cooling system or water cooling system ensures the equipment long-time work stably under the
high temperature.
* CE&ISO 9001:2000.
Pipe Bending Tooling
* Bending Die:Selected according to tube
OD(outside diameter) and CLR (center line
radius) requirements.
* Clamp Die:Selected according to tube OD
and match the Bend Die.
* Pressure Die:Selected according to tube
OD and match the CLR (centre line radius)
of the Bend Die.
* Collet:Selected according to tube OD. Collet
only used on CNC machine.
Pipe Bending Mandrel
*Selected according to tube OD,tube
thickness, bending angle and bending
radius.Recommended for small radii and
thinner wall thickness.

* IMPORTANT: Setting of the Mandrel should
be carried out with the Mandrel fully forward
not retracted.
Model
SB-89CNC-2/3A-1S
_
CNC / Full Automatic 2/3A
Hydraulic/Electric Bending 1S:1 Stack
_
Max. Bending Capacity
￠89 (3.5”)×6mm
_
Bending Degree
0-190°
_
Bending Radius
40-400mm (for machine)
_
Min Bending Radius
R≥1.5D (for pipe)
_
Mandrel Length
4200mm(can be customized)
_
Max. Bending Speed
40°/s
_
Max. Rotating Speed
155°/s
_
Max. Feeding Speed
800mm/s
_
Bending Accuracy
±0.1°/±0.05°
_
Rotating Accuracy
±0.05°
_
Feeding Accuracy
±0.05mm
_
OPTIONAL 1 (MAIN FUNCTION):
* Double/Triple/Quadruple Stack (Different
Radius on one pipe bending)
* Pipe Rolling Function(Big Radius)
* Booster Function(Small Radius)
* Left&Right Head Bending
* Pipe Punching Function
* Cut Off Function
* Robot Loading&UnLoading
* Robot Automatic Welding Detector
* Other customized function if workable
OPTIONAL 2:
* IPC Controlling
* Linear Guide Automatic Lubrication
* Mandrel Automatic Lubrication
* Anti-clockwise Bending
* Extra Mandrel Length
* Safety Mat
* Cooling Conditioner
* Safety Cover
SLS Machinery Co.,Ltd specialized in manufacturing cost-effective pipe processing machines as pipe bending machine,cold saw machine, pipe end forming machine,pipe swaging/tapering machine,pipe embossing machine,pipe notching machine and other automated pipe processing machines range from simple to complex CNC powered ones.

1.Q: Are you a manufacturer or trading company?

A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.

2.Q:Where is the nearest airport to your company?



 A: Wuxi Airport or Shanghai Airport.

3.Q: How to choose the pipe/tube bending machines?

 A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- The pipe material
- Bending radius value
- Bends NO. on one pipe
- Bending shape in 2 or 3 dimensional
- Other requirements

4. Q: Do you have CE certificate?

A: We have CE certificate.

5. Q:How about your service?

A:
Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
After Sales Service:
1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine.
2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your  account.
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.

Contact us:
Suzhou SLS Machinery Co., Ltd.
ADD: Economical Zone, Zhangjiagang City, Jiangu Provice, China
Web: www.slsmachinery.com / Email: info@slsmachinery.com
Wechat/Whatsapp/Skype: + 86 18100150701 / TEL: + 86 18100150701/+86 18915681299
