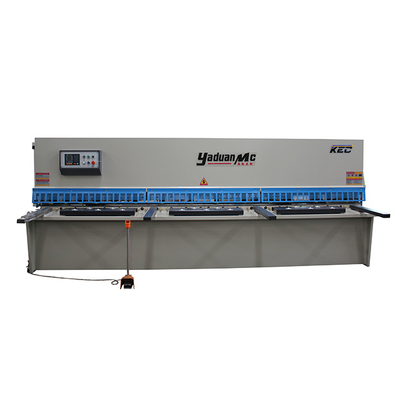

High quality high speed building material stores metal sheet shearing machine, sheet metal cutting machine

1 Set
MOQ
High quality high speed building material stores metal sheet shearing machine, sheet metal cutting machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Max. Cutting Width (mm): 2500
Max. Cutting Thickness (mm): 4 mm
Automatic Level: Fully Automatic
Shearing Angle: 1.5 degree
Blade Length (mm): 2400 mm
Backgauge Travel (mm): 20 - 600 mm
Throat Depth (mm): 150 mm
Condition: New
Nom de marque: KECMT
Power (kW): 5.5 kW
Weight (KG): 3800 KG
Place of Origin: Anhui,China
Voltage: 380V/50HZ/3PH
Dimension(L*W*H): 3040*1610*1620
Year: 2021
Warranty: 3 years
Key Selling Points: Easy to Operate
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Showroom Location: Canada, United Kingdom, United States, France, Germany, Russia, Japan, Australia
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 3 years
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Control system: Estun E21 NC Control
Cutting material: Metal Stainless Steel Carbon Steel
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Canada, United Kingdom, United States, France, Pakistan, Mexico, Russia, Australia, South Africa
Certification: CE
Informations de base
Place of Origin: Anhui,China
Nom de marque: KECMT
Certification: CE
Conditions de paiement et expédition
Packaging Details: Nude packing for FCL. Plywood packing for LCL.
Description de produit
Product Description
metal sheet shearing machine, sheet metal cutting machine
Features of shearing machines:
1. The front –feeding platform has equipped with ruler for the plate feeding and also smooth in the surface to protect the plate in any surface hurting when feeding. The ruler can be precision into MM or more unit for accuracy control and checking.
2. The working table has equipped with ball or round bar steel to support the plate into feeding and also the protection for any surface lacerate.
3. The electronic box been equipped with good certificated components.Mostly we use CE certificated SIEMENS or Schneider components for exportation machines and also some high quality CCC certificated components to carte for different standard needs clients.
4. The machine body steel ,we mostly choose China top brand steel plate provider Shanghai BAOSTEEL with good quality and been treated with anticorrosive paint before the last paint on. So the machine firstly will have good durable usage and also perfect outside appearance.
5. The blade :The blade material is 9CrSi or 6CrW2Si, the material is high tested material with thousand times for high rigidity and cutting result. The up blade is rectangle blade with four blade edges which is different from QC12Y Swing Beam shear machine (The detailed please check SIECC/SIECCTECH blade explain photo and instruction). The blade clearance can be adjusted by manual or by motor. Both has the index dial to display the clearance so the control and display can be easily. And the up blade shaft use tilting structure to promote the shearing precision.
6. The machine equipped the press foot to press the plate stably when cutting, the foot has been equipped with plastic surface with high fraction without surface destroy of the plate. For Hole plate,we will equip square foot for stable square press.
7. Gear Pump: We use good brand “straight conjugate internal gear pump” in both China brand Shanghai chengjie or Germany Eckerler. The internal gear pump is treated as never wear pump in industry and has been widely used in high precision hydraulic machines with the character of low-noise, no pulsation and long lifetime. Shanghai Chengjie gear pump also used in China’s aircraft industry so it is trustable and reliable. When in high speed working, the audio is flat and smooth even no trapping. The long lifetime is depend on his abrasive performance the inner machine components has oil film protection layer, so even use normal hydraulic oil, even no abrasion.
8. The hydraulic system can use Germany Rexroth or USA OMG system. The return is controlled by nitrogen return cylinder with stable working process and easy in operation. The hydraulic press enforced up transmission and nitrogen impose the up push-out with good cooperation working.(The working principle can revert to SIECC technology drawing of QC11Y and QC12Y)
9. Backgauge are counted by counter and can be micro-adjusted and is motor drived.
10. the machine will be equipped with fence protection door before the cutting blade and the press foot.The fence can be opened if any needed. Near the throat,we will equipped with open-available door for person security but open-able when needs any inside checking.
11. Using three bearing rolling track to eliminate rail gap and enhance the shearing quality.(Machine drawing available for clearly explain)

high quality High speed metal sheet shearing machine, sheet metal cutting machine QC12Y-4*2500
Specification
Model
Max.Thickness
Yield strength
Max. Length
Angle
X.Stroke
Frequency
Power
L*W*H(mm)
Weight
QC12Y-4*2500
4mm
≤450kN/cm
2500mm
1°30'
20~600mm
16Times/min
5.5kW
3040*1610*1620
3800Kg
QC12Y-4*3200
4mm
≤450kN/cm
3200mm
1°30'
20~600mm
14Times/min
5.5kW
3840*1610*1620
5000Kg
QC12Y-4*4000
4mm
≤450kN/cm
4000mm
1°30'
20~600mm
10Times/min
5.5kW
4600*1700*1700
6500Kg
QC12Y-4*6000
4mm
≤450kN/cm
6000mm
1°30'
20~600mm
8Times/min
7.5kW
6460*2100*3200
11000Kg
QC12Y-6*2500
6mm
≤450kN/cm
2500mm
1°30'
20~600mm
14Times/min
7.5kW
3040*1610*1620
5000Kg
QC12Y-6*3200
6mm
≤450kN/cm
3200mm
1°30'
20~600mm
12Times/min
7.5KW
3840*1610*1620
6000Kg
QC12Y-6*4000
6mm
≤450kN/cm
4000mm
1°30'
20~600mm
8Times/min
7.5KW
4620*1750*1700
8200Kg
QC12Y-6*5000
6mm
≤450kN/cm
5000mm
1°30'
20~600mm
6Times/min
11KW
5400*1800*1900
10500Kg
QC12Y-6*6000
6mm
≤450kN/cm
6000mm
1°30'
20~600mm
5Times/min
11KW
6480*2100*2300
16500Kg
QC12Y-8*2500
8mm
≤450kN/cm
2500mm
1°30'
20~600mm
10Times/min
11KW
3040*1700*1700
6000Kg
QC12Y-8*3200
8mm
≤450kN/cm
3200mm
1°30'
20~600mm
8Times/min
11KW
3860*1700*1700
7200Kg
QC12Y-8*4000
8mm
≤450kN/cm
4000mm
1°30'
20~600mm
8Times/min
11KW
4640*1700*1700
8800Kg
QC12Y-8*5000
8mm
≤450kN/cm
5000mm
1°30'
20~600mm
8Times/min
11KW
5400*2100*2000
11500Kg
QC12Y-8*6000
8mm
≤450kN/cm
6000mm
1°30'
20~600mm
8Times/min
11KW
6480*2100*2350
18000Kg
QC12Y-10*2500
10mm
≤450kN/cm
2500mm
2°
20~600mm
9Times/min
11KW
3040*1700*1700
7300Kg
QC12Y-10*3200
10mm
≤450kN/cm
3200mm
2°
20~600mm
9Times/min
11KW
3860*1700*1700
8000Kg
QC12Y-10*4000
10mm
≤450kN/cm
4000mm
2°
20~600mm
8Times/min
11KW
4650*2100*2000
12050Kg
QC12Y-10*6000
10mm
≤450kN/cm
6000mm
2°
20~1000mm
5Times/min
15KW
6500*2100*2300
24000Kg
QC12Y-12*2500
12mm
≤450kN/cm
2500mm
1°40'
20~600mm
9Times/min
18.5KW
3140*2150*2000
9000Kg
QC12Y-12*3200
12mm
≤450kN/cm
3200mm
1°40'
20~600mm
9Times/min
18.5KW
3880*2150*2000
10800Kg
QC12Y-12*4000
12mm
≤450kN/cm
4000mm
1°40'
20~1000mm
8Times/min
18.5KW
4680*2150*2000
13000Kg
QC12Y-12*5000
12mm
≤450kN/cm
5000mm
2°
20~1000mm
6Times/min
18.5KW
5900*2150*2000
16000Kg
QC12Y-12*6000
12mm
≤450kN/cm
6000mm
2°
20~1000mm
5Times/min
18.5KW
6900*2600*2700
29500Kg
QC12Y-12*8000
12mm
≤450kN/cm
8000mm
2°
20~1000mm
5Times/min
18.5KW
9000*3500*3500
46500Kg
QC12Y-16*2500
16mm
≤450kN/cm
2500mm
2°30'
20~600mm
9Times/min
22KW
3140*2150*2000
11000Kg
QC12Y-16*3200
16mm
≤450kN/cm
3200mm
2°30'
20~600mm
8Times/min
22KW
3880*2150*2000
13000Kg
QC12Y-16*4000
16mm
≤450kN/cm
4000mm
2°30'
20~1000mm
8Times/min
22KW
4650*2150*2200
16300Kg
QC12Y-16*5000
16mm
≤450kN/cm
5000mm
2°30'
20~1000mm
6Times/min
22KW
5900*2600*2700
20000Kg
QC12Y-16*6000
16mm
≤450kN/cm
6000mm
2°30'
20~1000mm
5Times/min
22KW
6900*2700*2700
36000Kg
QC12Y-16*8000
16mm
≤450kN/cm
8000mm
2°30'
20~1000mm
5Times/min
22KW
9000*3500*3500
75000Kg
QC12Y-20*2500
20mm
≤450kN/cm
2500mm
3°
20~1000mm
8Times/min
22KW
3440*2300*2500
15800Kg
QC12Y-20*3200
20mm
≤450kN/cm
3200mm
3°
20~1000mm
8Times/min
22KW
4150*2350*2700
18500Kg
QC12Y-20*4000
20mm
≤450kN/cm
4000mm
3°
20~1000mm
5Times/min
22KW
4850*2600*2700
21500Kg
QC12Y-20*6000
20mm
≤450kN/cm
6000mm
3°
20~1000mm
4Times/min
30KW
6700*3000*3000
47000Kg
QC12Y-25*2500
25mm
≤450kN/cm
2500mm
3°
20~1000mm
8Times/min
37KW
3200*2700*2900
19000Kg
QC12Y-25*3200
25mm
≤450kN/cm
3200mm
3°
20~1000mm
5Times/min
37KW
4200*2700*2900
23000Kg
QC12Y-30*2500
30mm
≤450kN/cm
2500mm
3°
20~1000mm
4Times/min
37KW
3300*2900*3000
23500Kg
QC12Y-30*3200
30mm
≤450kN/cm
3200mm
3°30'
20~1000mm
4Times/min
40KW
4200*2900*3200
26000Kg
QC12Y-40*2500
40mm
≤450kN/cm
2500mm
4°
20~1000mm
3Times/min
55KW
3200*3300*3000
38000Kg
QC12Y-40*3200
40mm
≤450kN/cm
2500mm
4°
1000mm
3Times/min
55KW
4300*3300*3200
49000Kg
Details Images
SHEARING PROCESS
Perfect design in every aspect; By choosing the new and improved CNC guillotine,we'll have maximumsafety, high accuracy and unique
ease of use.
Blade gap, cutting angle and cutting length are all adjusted based on material selection and thickness automatically.

The critical parts of the KEC press brakes and shearing machines are manufactured in Germany.
The carefully selected components come from long-term partners globalwise.

We rely on our quality and therefore give our guillotine a 3-year warranty.
Siemens main motor

Using Siemens Motor guarantees the

machine service life, and reduce the noise

when working.
