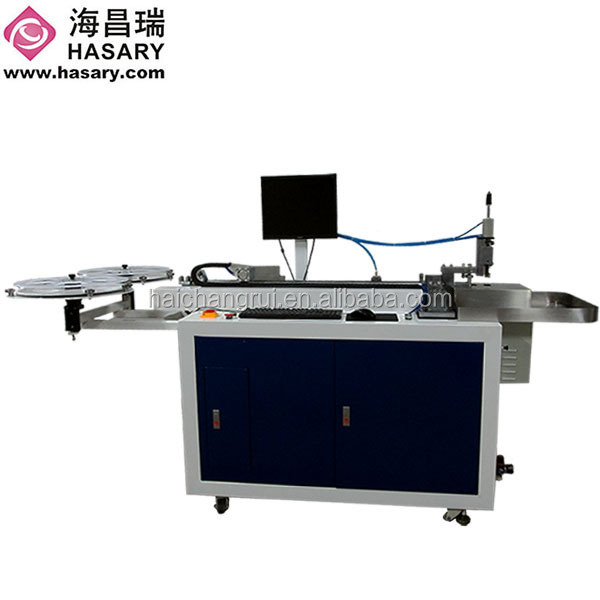

2019 Industry Automatic Steel Rule Bender Machine For Cutting Die Making Equipment

Feeding---use the roll feeding system, could feed the steel rule very fast and accurately.

Cutting---automatical cutting, easy to cut the steel rules.

Bridging---automatic bridging.

Lipping---automatic lipping,

Bending---use firmware bending system, could bend the boxes, toys, electronic perfectly.

Rule rest---use the single rule rest, coule move 2 sides.

Software---english interface is easy to learn and operate.

Steel rule---thickness 1PT(0.45mm), 1.5PT(0.53mm), 2PT(0.71mm)

Computer automated production with highly precise electronic components controlling and monitoring the production process to bend die-cutting rules precisely.

Punch bridge, lippers, straight cuts and perforation automaticlly, and producing die-cutting rules with all these functions at one time.

Ball-screw rule feeding design o support both coiled and straight tules.

Min 90° R

1mm

Min 180° R

1.5mm

Max Bending Angle

130°

Min Shearing Size of the Tall

0.5mm

Bridge Site Size

Width: 6mm

Height: Adjustable

Available Document Forms

DXF, AI, PLT

Available Environment

(Ventilated, Dryness)below 40°

Air Pressure

0.5-0.6mpa

Power

1.0KW

Configuration

Computer Configuration

P4 Mainframe

Core Dual CPU

2G Storage

19 Inch LDD Widescreen

Accessory

1pcs Of Blade

1 Set Of Tools And Outside Bending Model

1 Set Of Tools

1. User-friendly

Low tower keyboard operation effectively avoid personal injury due to long blade in bending process.

2. Portable Double Plate Design

Make it more safer,convenient and quick to change blade.

3. Self-devoloped Software

Free upgrades, support layer selection, fully supported formats PLT, AI, DXF, etc.

4. Accurate

Fast and precise servo feeding, precision screw and pneumatic double clip blade anti-skid design make it more accurate.

5. Easy Operation

Unique custom shortcut key module make operation easier. Click and marquee graphics capabilities support from the pick to processing without waiting.

6. Quality Assurance

All wearing parts are high strength, good thoughness. Wearing parts selling price according to cost after the warranty period.
