Aperçu /Produits/Machine automatique de cintreuse/Laser Die Bending Maker Offer CNC Automatic Ruler Bending Machine For Blade

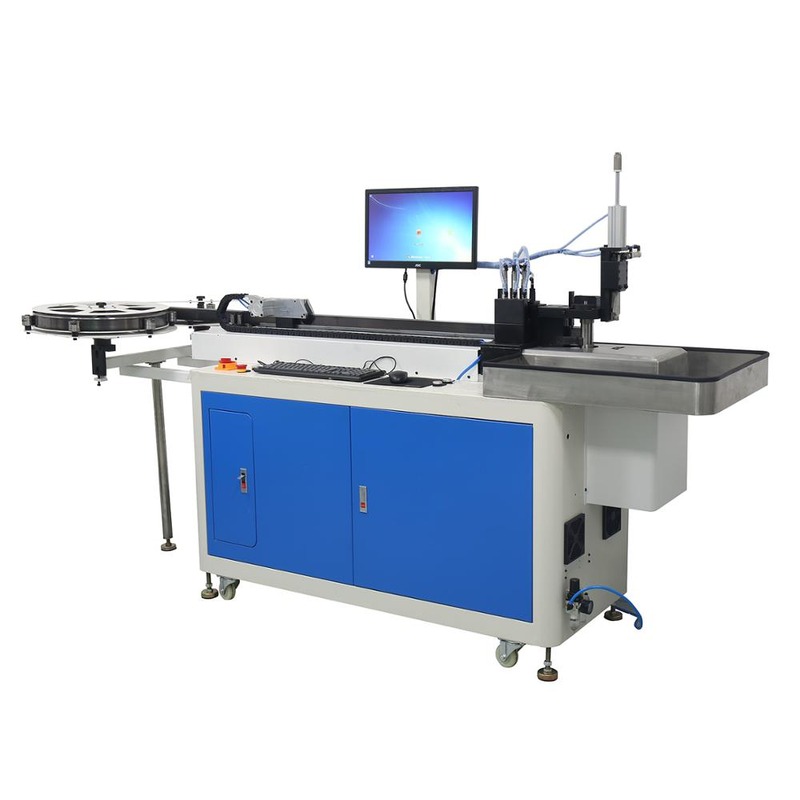

Laser Die Bending Maker Offer CNC Automatic Ruler Bending Machine For Blade

1 set
MOQ
Laser Die Bending Maker Offer CNC Automatic Ruler Bending Machine For Blade
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Place of Origin: Guangdong, China
Condition: New
Machine Type: Strip Sheet Bending Machine
Nom de marque: WT
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Carbon steel
Power: CNC
Automation: Automatic
Extra Services: Bending Bridge Cutting Lipping Broaching Nicking Perforation
Year: 2019-9-9
Weight (KG): 520
Key Selling Points: Self Develop Software
Warranty: 1 Year, Lifetime free warranty for software
Applicable Industries: Manufacturing Plant, Printing Shops, Advertising Company, Printing Packing
Certification: ce
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Product name: Steel Rule Bender
Application: Laser Die Bending
Power Supply: Single Phase 220V 50/60HZ
File Format: DXF AI PLT
Rule Thickness: 1.3pt 2pt 3pt 4pt
Rule Height: 8-65
Motor: Panasonic
Function: Auto Feeding+bending+slotting
Usage: Cutting Rule Bending Machine
Informations de base
Place of Origin: Guangdong, China
Nom de marque: WT
Certification: ce
Conditions de paiement et expédition
Packaging Details: Free Fumigation Sea Worthy Plywood Packing
Description de produit
Product Description

Auto Blade Bender Machine Application

Auto Blade Bender Machine, Steel Rule Bending Machine, Creasing Cutting Rule Bending Machine, Laser Die Bending Machine, Steel Rule Die Bender, Auto Bender Machine For Die Cutting, Precision Steel Rule Die Bender Machine, Steel Rule Die Bender of Die Making Machine is suitable for Making Cutting Die Board in packing and printing industry.  It is widely used to produce paper box corrugated box cutting dies, Shoe dies, Blister Cutting Dies, Clicker Dies, Label Electronic Dies, Craft Dies, Acrylic Dies, Leather Cutting Dies, Foam Cutting Dies etc.


WT06 Specifications
Steel Rule Blade thickness(mm)
0.71 (2PT)
1.07 (3pt)
1.42(4PT)
Steel Rule Blade Height
8-65mm
8-65 mm
8-65 mm
Maximum bending angle
100
100
100
Minimum bending radius of 90 degrees(mm)
0.5
0.6
1
Minimum bending size of the front(mm)
1.3
1.5
1.8
Minimum bending size of the Rear(mm)
>0
>0
>1
Feeding Accuracy
0.03/300mm  400W Panasonic Servor Motor And High Precision HIWIN Screw guider
Bending Flatness
0.2/100mm 750W Panasonic Servor Motor And Shimpo Reducer with 10 years Mould Producing Experence
Bridge Slot Mode
Auto Continuous bridge, Height (15--18)adjustable  Width(5-10)Gear Motor driven
Cutting Mode
Automatic cut-off or twist off option(Automatic identification alarm and self Monitor)Gear Motor drive Full Power
Lipping Mode
Gear Motor Driven Inside Lipping and Outside Manual Lipping Option, Full Power
Creasing Cutting
Option functions, One key select all itams and auto reduce header rear for creasing
Best Files format
DXF,  DWG,  AI,  CDR,  PLT
Weight
620kg
Size
2660*1150*1540
Power
Single Phase 1.8kw  110V  220V / 50HZ  60HZ
HS Code
8462219000
Warranty
Software Control Mother Board  Life-time free Warranty For Free

Main Features

Auto Bending ,Bridging,Slotting, Cutting , Lipping, Broaching,Nicking,Perforation, Bending Notching with 0.45-3mm thick and 8-65mm high blade.
(Die board laser cutting machine for steel rule dies making)
Features:
Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
1 stes high precision HIWIN guide screw
1 sets Japan server motor Shimpo reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low maintance fee

>>> Applicable materials and industries
Widely used in blade bending, package box and so on

>>> WT Bending System
1.Feeding-----use the Screw Guider feeding system,could feed the steel rule very fast and accurately

2.Cutting-----automatical cutting, easy to cut  the steel rules

3.Bridging-----automatic bridging Width height adjusted atomatically.

4.Lipping-----automatic lipping

5.Bending-----use firmware bending system, could bend the boxes, toys, electronics perfectly

6.Rule Rest-----use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rule trays

7.Broaching ----- Use Tungsten Broaching Saw Blade, Longer LifeTime.

8.Nicking ----- Use Tungsten Nicking Saw Blade, Longer LifeTime. Gap from 0.2mm to 0.8mm.

9.Perforation ----- Use Tungsten Saw Blade, Longer LifeTime.

10.Bending Notching ----- Automatic Bending Notching.

11.Software-----Self Develop English Spanish Russian interface is easy to learn and operate

12. Trainning -----Complete training installation videos.
Detailed Images

Machine Bending Parts

Name: Bending Tools

Brand: WT

Original: WORTHY TALL

10 Years of Mould Making Experience. Get High Precision Tools. Ensure the longer life time for the bending tools and flatness of Bending Rules.

Machine Bridge Slot Parts

Name: Bending Slot Gear Motor Driven
Brand: WT
Original: WORTHY TALL
10 Years of Mould Making Experience. Get High Precision Tools. Ensure the longer life time for the slot tools and few Burr of Rules.  Gear Motor Driven Full Power. Easy Repalcement

Machine Cutting Parts

Name: Cutting Parts
Brand: WT
Original: WORTHY TALL
10 Years of Mould Making Experience. Get High Precision Tools. Ensure the longer life time for the Cutting tools and few Burr of Rules And Seemless joint By One Cutting. Gear Motor Driven Full Power. Easy Repalcement

Machine Lipping Parts

Name: Lipping Tools
Brand: WT
Original: WORTHY TALL
Self Design and producing tools. Auto Gear Motor Driven Full Power. Easy Repalcement.

Manual Lipping Machine

Semi-Automatic Lipping Cutting Machine. Manual Make Lipping And Cutting For Die Maker When Installing Rule to Die Board.  Present Machine With WT11 Auto Blade Bender Machine.

Machine Driven Motor

The Bridge Cutting Lipping Slot Parts Driven by Gear Motor. Full Power. It is no likely to get stucked when working. Feeding And Bending Parts use Panasonic Servor Motor And Shimpoo Reducer ensure the accuracy of bending and feeding.

Research & Developing Ability

WORTHY TALL INDUSTRY CO., LIMITED has a group of high degrees and skilled engineers focus in laser die making machine feild for 10 years , They Design improve the mechanic parts software and mother board all by themselves, All the engineers are In proffesional English. Which ensure the proffesional technique support for customer in presale and aftersale services. Also have the ability to offer cutomer with lifetime free warranty for mother borad and software. And make improvements for software when customer give contruction instructions Immediately.

Mechanic Design.

5 Mechanic Engineer Work on the mechanic design new machine develop and improvements.

Mother Board Design

3 PCB designer Work on Control Board For the Bending Machine And Laser Cutting machine.

Software Design

5 Software engineers Developing the software for the machines and add new functions and make improvements for the exist software.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Free Sample testing support.

* View our Factory.

* production processes proposals

* OEM

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Video Call Trainning and debugging

* Team viewer remote Checking for cusomter for free.

Printing South China 2019.


China Printing 2019


China Printing


Partner

Partner for Packing Die Making

Partner for Shoe Die Making

Partner for Cigarette Packing Dies Making

Certifications
Packing & Delivery
Packaging
Size
195(L) * 85 (W) * 125 (D)
Weight
520kg



Packaging Details
The normal package is free fumigation  wooden box(Size: L*W*H). If FCL ,we will use pe film for packing or pack it according to customers special request.
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

Related Machine Working Video.

We offer the laser Die Board cutting machine for cutting die board up to 22mm, and Auto Blade bender for 1.3pt 2pt 3pt 4pt and height from 8-65mm .steel rule bender, and die cutting material like steel rule, plywood sheet.


Please check below video to know more of our machines:
1. Auto bender for 2pt and 3pt?  https://youtu.be/2pMCjEZUR_8
3. flat die board cutting 1000w? https://youtu.be/RyE7Sb0EoyY
4. flat die board cutting machine 400w/600w?  https://youtu.be/ftkd-hQG47s

5.Creasing Rule Cutting Machine?   https://youtu.be/e0w4OWajfYQ


5. How do I learn to operate Auto Blade Bender Machine?
1) User manual, CD with video will along with machine for training you how to install, how to use, and how to maintains,
2) Moreover, WhatsApp, Skype, Team viewer online service is available for you.
3) Free training will offer you on our factory, Engineer is available to offer international service!
4) Local agent service available is extending all over the world!

6.How to solve the problem when using the machine?
All of our engineers are English avaliable.We can teach you how to find the problem. engineers are Ready to serve customers 7*24hours by video call or teamviewer. if all are helplesss we can arrange engineers to solve for you in your factory within 48 hours. Noramlly it is ok to solve the problems by video call. There is no any customer need us to send engineer to repair in their factory. Because all parts of our machine is designed and produced by ourselves. We have a skilled group of engnieers. They can solve all problems by video call.

7. How about the spare parts of auto blade steel rule bender and its lifetime?
we have 10 years of mould making experience. We have all the spare parts on stock. We can send it out As soon as customer make commands to us. Normally it is ok to use at least for one year.

8. How can I become a Agent of WT Laser?

Agent all over the world is wanted, welcome to visit our factory to know more of each other for start our long term cooperation!.
