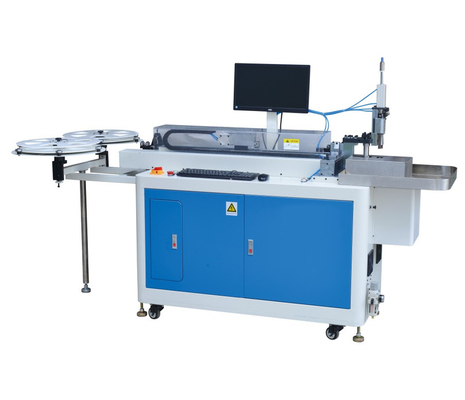

Steel Rule Used CNC Blade WT06 Automatic Bending Bender And Creasing Cutter With Mutil-functions For Die Making

1 set
MOQ
Steel Rule Used CNC Blade WT06 Automatic Bending Bender And Creasing Cutter With Mutil-functions For Die Making
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Place of Origin: china
Condition: New
Machine Type: Steel rule bender machine
Nom de marque: WT
Raw Material: Steel Bar
Material / Metal Processed: Carbon steel
Power: CNC
Automation: Automatic
Extra Services: Slotting & Notching
Year: 2019-11-8
Weight (KG): 550
Key Selling Points: Competitive Price
Warranty: 1 Year, lifetime for mother board
Applicable Industries: Food & Beverage Factory, Home Use, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, printing packing
Certification: ce
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Application: Steel rule bending
Control system: Self develop software
Function: bending notching bridge cutting lipping perforation nicking broaching
Rule thickness: 1.3pt 2pt 3pt 4pt
Rule height: 8-65mm
Max bending Angle: 110°
feeding Accuracy: ±0.03/300mm
Transfer System: Panasonic Motor with Highwin
Usage: Die Board Making
Informations de base
Place of Origin: china
Nom de marque: WT
Certification: ce
Conditions de paiement et expédition
Packaging Details: The normal package is free fumigation wooden box(Size: L*W*H). If FCL ,we will use pe film for packing or pack it according to customers special request.
Description de produit
Product Description
WT06 steel rule Auto blade Bender Machine is widely used to make cutting dies for die cutting industry
Http://www.wto-laser.com

>>> Machine Feature
Auto Bending ,Bridging , Cutting , Lipping, Broaching,Nicking,Perforation, Bending Notching with 0.45-3mm thick and 8-60mm high
blade.
(Die board laser cutting machine for steel rule dies making)
Features:
Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
2 sets Pansonic server motor(for broaching);
1 stes high precision HIWIN guide screw
1 sets Japan server motor reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low
maintance fee

>>> Applicable materials and industries
Widely used in blade bending, package box and so on

>>> WT Bending System
1.Feeding-----use the roll feeding system,could feed the steel rule very fast and accurately

2.Cutting-----automatical cutting, easy to cut the steel rules

3.Bridging-----automatic bridging Width height adjusted atomatically.

4.Lipping-----automatic lipping

5.Bending-----use firmware bending system, could bend the boxes, toys, electronics perfectly

6.Rule Rest-----use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rule trays

7.Broaching ----- Use Tungsten Broaching Saw Blade, Longer LifeTime.

8.Nicking ----- Use Tungsten Nicking Saw Blade, Longer LifeTime. Gap from 0.2mm to 0.8mm.

9.Perforation ----- Use Tungsten Saw Blade, Longer LifeTime.

10.Bending Notching ----- Automatic Bending Notching.

11.Software-----English Spanish Russian interface is easy to learn and operate

12. Trainning -----Complete training installation videos.
Technical Parameters
Blade thickness(mm)
0.45
0.53
0.71(2PT)
1.07(3PT)
1.42(4PT)
Blade height(mm)
8-25
8-25
8-30
8-40
8-60
Maximum bending angle
100
100
100
100
100
Minimum bending radius of 90 degrees(mm)
0.4
0.4
0.5
0.5
0.5
Minimum bending size of the front(mm)
1.0
1.0
1.5
1.5
1.5
Minimum bending size of the Rear(mm)
>0
>0
>0
>0
>0
Feeding Accuracy
0.03/300mm Panasonic Server Motor And HighWin Precision Linear guide
Bending Flatness
0.2/100mm
Bridge Mode
Automatic continuous bridge, bridge height adjustable(15--18mm) Gear Motor drive
Cutting Mode
Automatic cut-off or swing(Automatic identification alarm and self Monitor)Gear Motor drive Full
Power add olecranon pneumatic machine
Line Cut
Efficiently Bending the Blade and Cutting the Line At the Same time.
Best Files format
DXF,DWG,AI,CDR,PLT
Weight
620kg
volume
2660*1150*1540
Power
1.8kw 110V 220V / 50HZ 60HZ
Detailed Images
