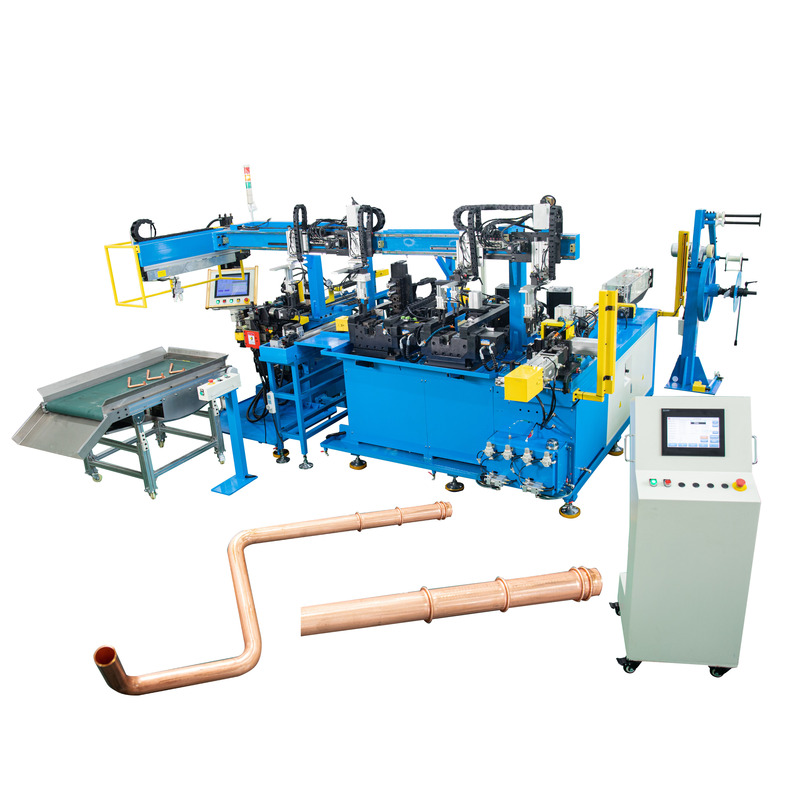

Factory End Forming and Bending Integrated Work Cell

1 Set
MOQ
$18,500.00(>=1 Sets)
Prix
Factory End Forming and Bending Integrated Work Cell
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Place of Origin: Zhejiang, China
Nom de marque: Heliang
Condition: New
Machine Type: Tube processing unit
Weight (KG): 2100
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot sale
Warranty of core components: 1 Year
Core Components: PLC, Motor, Gear, Pump
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant, Automotive, Urban furniture, HVACR, Nautical, Cycle, Motorbike, Earth moving machines, agricultural machinery, camper, space, aerospace, household appliances
Showroom Location: China
Machine model: HLCFB20-Q1H2-1
Degree of automation: 100%
Color: Blue or customized color
Raw material: Copper
Bending capacity: 25mm
Servo Motor: Mitsubishi
PLC: Mitsubishi
Linear rail: CSK/HIWIN
Cylinder: Airtac/ SMC
Limit sensor: Autonics
Informations de base
Place of Origin: Zhejiang, China
Nom de marque: Heliang
Model Number: HLCFB20-Q1H2-1
Conditions de paiement et expédition
Packaging Details: Standard export wooden case
Supply Ability: 40 Set/Sets per Month
Description de produit
Product Overview

* CNC Cutting, End-forming & Bending Machine

* The machine is made up of 1 set of initial decoiler, straightening, feeding, cutting, front end forming, 2 rear end forming,
turn over positioning mechanism. CNC bender, horizontal transferring system, independent unloading device, products conveyor and safety fence
FEATURES AT A GLANCE
Decoiler: 1 set.
Straightening mechanism: using multi group of rollers for rounding and straightening.
Feeding mechanism: working with screw rod feeding and linear guiding driven by servo motor, and the feeding clamp will be clamped by cylinder.
Cutting mechanism: Working with externally rotating blade+ support roller construction, balde inlet is controlled by cylinder, lubrication is equipped.

More information please contact us.
Straightending Part
Cutting Part
End-forming part
Bending part
25 model right 3D CNC bender: bending is done by servo motor, reducer and gear transmission
PRODUCT SPECIFICATIONS
No
Item
Data
1
Power
37.5KW
2
Bucket capacity
2.8 M3
3
Operating weight
125Ton
4
Max. tractive force
96kN
5
Max. breakout force
96kN
6
Tipping load
60kN
7
Engine displacement
6750ml
8
Max. torque
500N.m
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK
FAQ

1. What kind of pipe materials can processing?
Carbon steel, stainless steel, Aluminum, Copper pipes, tubes, profile
Boil bank tubes processing
Condenser tubes processing
Wheelbarrow pipe processing
Exhaust pipe processing
Automobile pipe processing


2. What delivery time for standard machine?
Within 35 working days after received advanced payment.

3 Do you provide training to operation the machine??
1). Will provide operatiing video and manual book with our pipe bending machine.
2). Welcome your operators to our factory, we'll arrange everything at our factory.


3. What about your machine main component?
1). PLC: Japan Mitsubishi
2). Servo motor: Japan Mitsubishi
3). Hydraulic system: Japan Yuken
4). Decelerate motors: VGM/CBT



5 Any optional functions for all your machines?
Full auto loading and unloading device, machines able to be multifunction like cutting+chamfering+end forming+bending+press plate
etc, according to your request.
6. What about your machine warranty?
One year warranty after machine reached customer's workshop.
And will responsible for lifetime maintenance
7. What certificate for Mandrel pipe bending machine?
We have ISO certificate for our factory and CE Certification for our machine.
8. What kind of package do you offer?
Export standard wooden case
